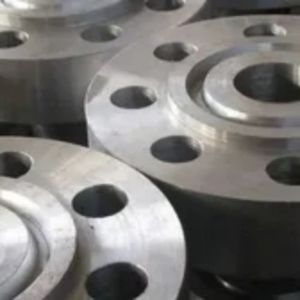

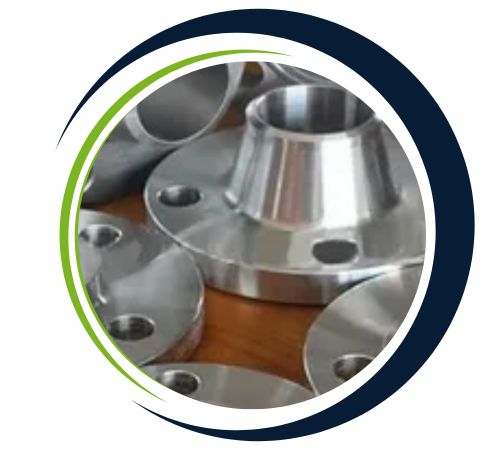

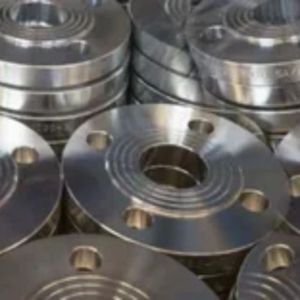

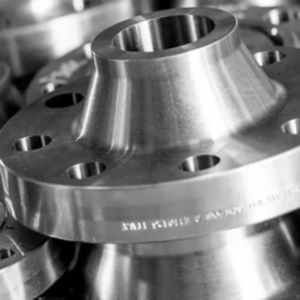

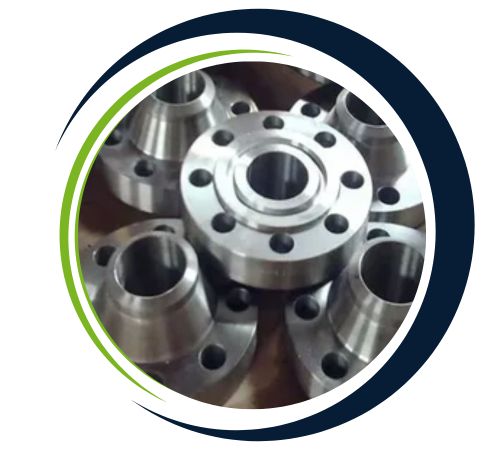

Supachok Flanges, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality **ANSI B16.5 Class 900 Flanges** tailored for high-pressure piping systems. These flanges are crafted to meet stringent international standards, ensuring they deliver outstanding strength, durability, and leak-proof performance—perfect for critical industrial applications. At Supachok Flanges, precision manufacturing, top-grade materials, and thorough quality testing come together to provide reliable products for clients around the globe. Industries like oil and gas, petrochemicals, power generation, and marine engineering trust ANSI B16.5 Class 900 Flanges, where safety and efficiency are paramount.
Made from premium carbon steel, alloy steel, and stainless steel—often enhanced with nickel, chromium, and molybdenum—these flanges boast impressive strength and corrosion resistance. They exhibit excellent tensile and yield strength, remarkable hardness, and superior toughness, allowing them to endure extreme pressure and temperature conditions. Plus, they resist pitting, crevice corrosion, and stress corrosion cracking. With dependable weldability, dimensional stability, and long-lasting durability, they ensure consistent performance in demanding industrial piping systems.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges. |
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 900 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Specialized Manufacturer of |
|
| Standard | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange
|
| Normal pipe size | Outside dia. of flange | Minimum thickness of flange | Overall Length | Bolt Circle | No. and Size of Holes | O.D. of raised face | |||
| Welding neck | Slip-on & socket welding | Lap Joint | |||||||
| O | Q | Y | Diam. | No. | dia. | R | |||
| 1/2 | 95 | 14.3 | 52.4 | 22.2 | 22.2 | 66.5 | 4 | 15 | 35 |
| 3/4 | 117 | 15.9 | 57.2 | 25.4 | 25.4 | 82.5 | 4 | 19 | 43 |
| 1 | 124 | 17.5 | 61.9 | 27.0 | 27.0 | 89.0 | 4 | 19 | 51 |
| 1-1/4 | 133 | 20.7 | 66.7 | 28.6 | 28.6 | 98.5 | 4 | 19 | 64 |
| 1-1/2 | 156 | 22.3 | 69.8 | 31.8 | 31.8 | 114.5 | 4 | 22 | 73 |
| 2 | 165 | 25.4 | 73.0 | 36.5 | 36.5 | 127.0 | 8 | 19 | 92 |
| 2-1/2 | 190 | 28.6 | 79.4 | 41.3 | 41.3 | 149.0 | 8 | 22 | 105 |
| 3 | 210 | 31.8 | 82.6 | 46.0 | 46.0 | 168.0 | 8 | 22 | 127 |
| 3-1/2 | 229 | 35.0 | 85.7 | 49.2 | 49.2 | 184.0 | 8 | 25 | 140 |
| 4 | 273 | 38.1 | 101.6 | 54.0 | 54.0 | 216.0 | 8 | 25 | 157 |
| 5 | 330 | 44.5 | 114.3 | 60.3 | 60.3 | 266.5 | 8 | 29 | 186 |
| 6 | 356 | 47.7 | 117.5 | 66.7 | 66.7 | 292.0 | 12 | 29 | 216 |
| 8 | 419 | 55.6 | 133.4 | 76.2 | 76.2 | 349.0 | 12 | 32 | 270 |
| 10 | 508 | 63.5 | 152.4 | 85.7 | 115.1 | 432.0 | 16 | 85 | 324 |
| 12 | 559 | 66.7 | 155.6 | 92.1 | 111.1 | 489.0 | 20 | 35 | 381 |
| 14 | 603 | 69.9 | 165.1 | 93.7 | 117.5 | 527.0 | 20 | 38 | 413 |
| 16 | 686 | 76.2 | 177.8 | 106.4 | 127.0 | 603.0 | 20 | 41 | 470 |
| 18 | 743 | 82.6 | 184.2 | 117.6 | 139.7 | 654.0 | 20 | 45 | 533 |
| 20 | 813 | 88.9 | 190.5 | 127.0 | 165.1 | 724.0 | 24 | 45 | 584 |
| 24 | 940 | 101.6 | 203.2 | 139.7 | 184.2 | 838.0 | 24 | 51 | 692 |
ANSI B16.5 Class 900 Flanges are widely utilized in industries that require secure and reliable connections in high-pressure piping systems. You’ll find them in oil and gas refineries, offshore drilling platforms, petrochemical plants, chemical processing units, and power generation stations. These flanges are perfect for pipelines, valves, boilers, heat exchangers, and storage tanks that manage steam, gases, and hazardous fluids. Their robust design and corrosion resistance make them ideal for marine and offshore settings. With exceptional strength and reliability, ANSI B16.5 Class 900 Flanges guarantee safe, efficient, and long-lasting performance.
Yes, we offer custom sizes for ANSI B16.5 Class 900 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
