ANSI B16.5 Class 150 Flanges Manufacturer and Supplier in Bangkok, Thailand

Supachok Flanges, a reputable manufacturer and supplier based in Bangkok, Thailand, focuses on delivering top-notch **ANSI B16.5 Class 150 Flanges** that adhere to international standards. Crafted for durability, precision, and outstanding corrosion resistance, these flanges ensure reliable, leak-proof connections in low to moderate pressure piping systems. Supachok Flanges is committed to providing long-lasting performance and exceptional quality, making their products perfect for industries like chemical, petrochemical, pharmaceutical, food, and marine. The ANSI B16.5 Class 150 Flanges are designed to handle various operational conditions while maintaining structural integrity, safety, and efficiency, making them a go-to choice for critical industrial applications.

ANSI B16.5 Class 150 Flange In Thailand, Raised Face Class 150 Flanges United kingdom, 150 LB Plate Flange Bangkok, ANSI B16.5 150 LBS Pipe Flange Pattaya, ANSI B16.5 Class 150 Forged Flanges Chiang Mai, AWWA Class 150 Flanges Rayong, 150 LBS Flange Manufacturer in Nonthaburi.

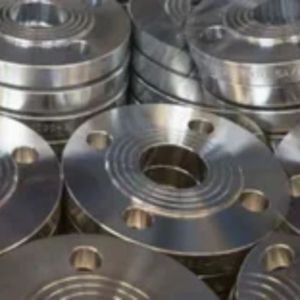

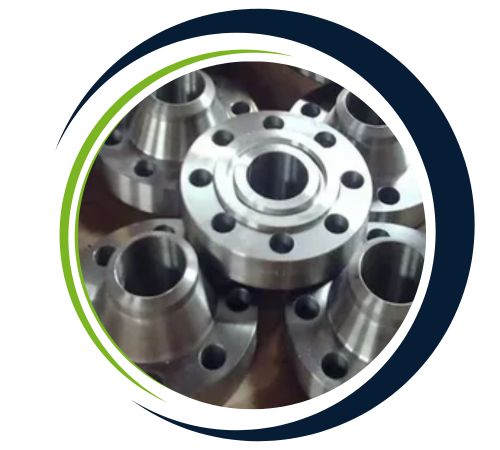

150 LBS Flanges

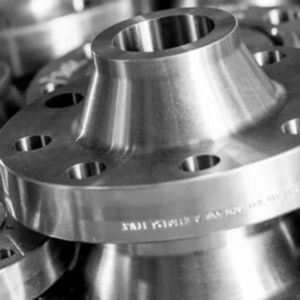

ANSI B16.5 Class 150 Flange

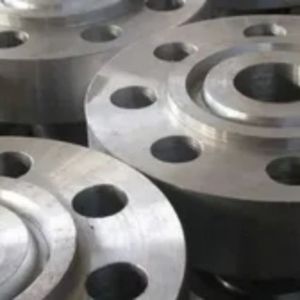

Raised Face Class 150 Flanges

These flanges are primarily made from carbon steel, stainless steel, or alloy steel, often infused with chromium, nickel, and molybdenum to boost corrosion resistance and mechanical strength. They showcase impressive tensile and yield strength, reliable hardness, and moderate elongation, ensuring they stand the test of time under low to medium pressure conditions. Their toughness, resistance to scaling, and good weldability make them ideal for standard industrial piping applications, delivering dependable performance, structural integrity, and seamless integration into various piping systems.

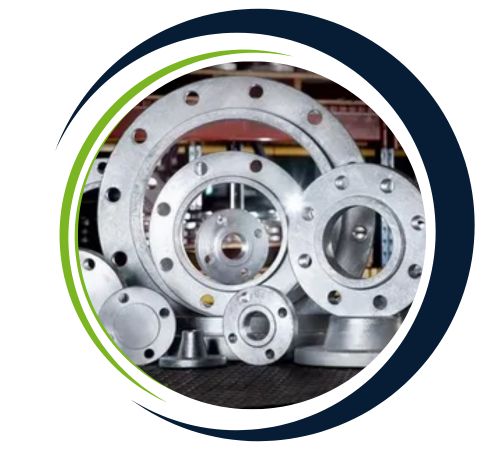

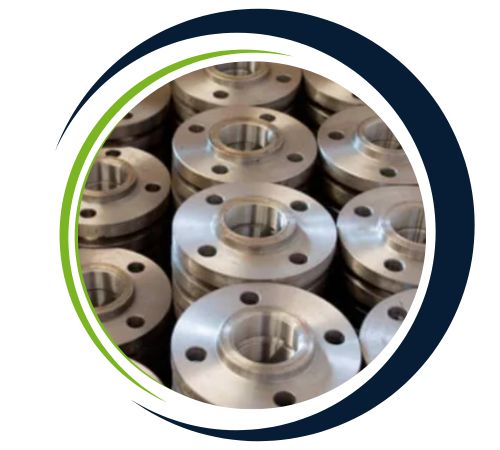

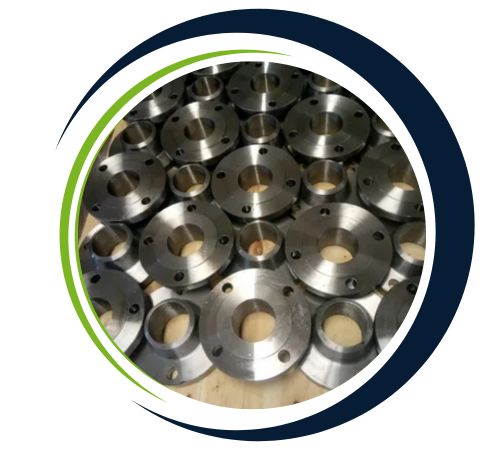

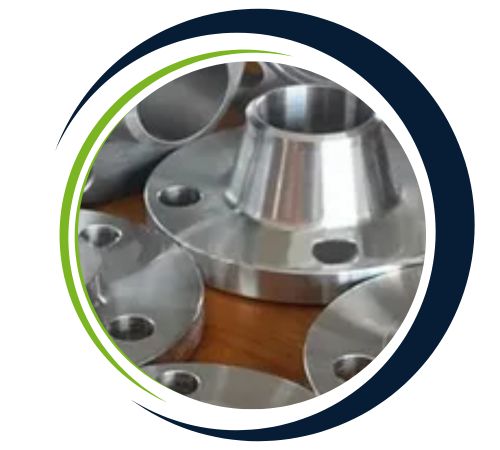

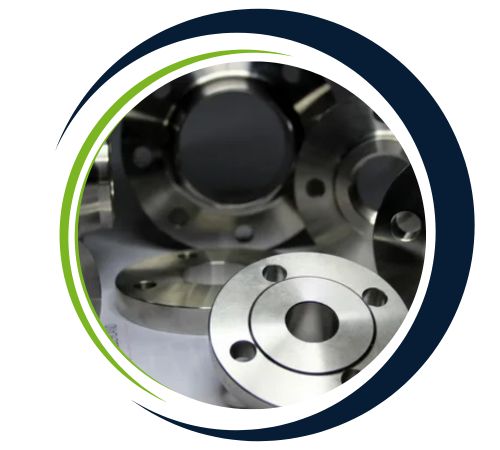

Duplex Steel 150 LBS Flange In Thailand, Monel 150# Flange United kingdom, Hastelloy Class 150 Flanges Bangkok, Inconel Class 150 Flanges Pattaya, Nickel Alloy 150# Flanges Chiang Mai, Titanium 150# Flanges Rayong, Best Price of Class 150 Flange Nonthaburi, Carbon Steel 150 LBS Flanges Uk, SDSS 150 LBS Flanges United kingsom, SS Class 150 Flanges Stockist Bangkok, Stainless Steel 150 LBS Flanges Pattaya, Alloy Steel 150 LBS Flanges Thailand, Copper Nickel 150 LBS Flanges Supplier in Bangkok, Thailand.

Largest ANSI B16.5 Class 150 Flanges Supplier in Bangkok, Thailand

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of ANSI B16.5 Class 150 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

ANSI B16.5 Class 150 Flanges Specification

Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Size Range	1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000
Standards	B16.47 Series A & B, ANSI/ASME B16.5, BS4504, B16.48, EN-1092, BS 10, DIN, ANSI Flanges, BS Flanges, ASME Flanges, EN Flanges, DIN Flanges, GOST Flanges.
DIN	6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64
JIS	5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K
UNI	6Bar 10Bar 16Bar 25Bar 40Bar
EN	6Bar 10Bar 16Bar 25Bar 40Bar
Main Types	Threaded / Forged / Plate /Screwed
Flange supporting material	Ring Joint, Gasket, Flange Bolts
Test Certificates	EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc
Most Common Types	Slip-On Ring Flange (SORF), Class 150 Weld Neck Ring Flange (WNRF), Class 150 Threaded Ring Flange, Class 150 Socket Weld Ring Flange (SWRF), Class 150 Blind Ring Flange (BLRF), Class 150 Ring Type Joint Flange (RTJF), Class 150 Lap Joint Ring Flange (LJRF), Class 150
Production technique	Forged, Heat treated and machined
Connect Type/ Flange Face Type	Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove
Special design	As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Class 150 Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange
Test	Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector
Equipment	Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc
Origin	Indian / West Europe / Japan / USA / Korean
Specialized Manufacturer of	Class 150 Blind Flanges Class 150 Large Diameter Flange Class 150 Table Flanges Class 150 Sorf Flange Class 150 Socketweld Flanges Class 150 Threaded Flanges Class 150 Weld Neck Flanges Class 150 Slip-On Flanges Class 150 Loose Flanges Class 150 AS 4087 Water Flanges Class 150 Lap Joint Flanges Class 150 Plate Flanges Class 150 Orifice Flanges
Standard	ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings AS 2129: Table D; Table E; Table H B.S: BS4504 , BS3293, BS1560, BS10 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 German (DIN) American standard (ANSI) Any other specilised flanges British standard (BS) The other standard : AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203;UNI2276 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638

ANSI B16.5 Class 150 Flanges Dimensions

Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Overall Length			Bolt Circle	No. and Size of Holes		O.D. of raised face
Normal pipe size	Outside dia. of flange	Minimum thickness of flange	Welding neck	Slip-on & socket welding	Lap Joint	Bolt Circle	No. and Size of Holes		O.D. of raised face
	O	Q	Y			Diam.	No.	dia.	R
1/2	89	11.2	47.6	15.9	15.9	60.5	4	15	35
3/4	117	15.9	57.2	25.4	25.4	82.5	4	15	43
1	108	14.3	55.6	17.5	17.5	79.5	4	15	51
1.1/4	117	15.9	57.2	20.6	20.6	89.0	4	15	64
1.1/2	127	17.5	61.9	22.2	22.2	98.5	4	15	73
2	152	19.1	63.5	25.4	25.4	120.5	4	19	92
2.1/2	178	22.3	69.8	28.6	28.6	139.5	4	19	105
3	190	23.9	69.8	30.2	30.2	152.5	4	19	127
3.1/2	216	23.9	71.4	31.8	31.8	178.0	8	19	140
4	229	23.9	86.2	33.3	33.3	190.5	8	19	157
5	254	23.9	88.9	36.5	36.5	216.0	8	22	186
6	279	25.4	88.9	39.7	39.7	241.5	8	22	216
8	343	28.6	101.6	44.4	44.4	298.5	8	22	270
10	406	30.2	101.6	49.2	49.2	362.0	12	25	324
12	483	31.8	114.3	55.6	55.6	432.0	12	25	381
14	533	35.0	127.0	57.2	79.4	476.0	12	29	413
16	597	36.6	127.0	63.5	87.3	539.5	16	29	470
18	635	39.7	139.7	68.3	96.8	578.0	16	32	533
20	698	42.9	144.5	73.0	103.2	635.0	20	32	584
24	813	47.7	152.4	82.6	111.1	749.5	20	35	692

ANSI B16.5 Class 150 Flanges are extensively utilized in industries that demand corrosion-resistant, leak-proof, and reliable connections in low to moderate pressure settings. You’ll find them commonly used in chemical and petrochemical plants, oil and gas refineries, pharmaceutical and food processing facilities, and marine systems. These flanges are perfect for pipelines, reactors, heat exchangers, and storage tanks, ensuring safe operation and efficient fluid flow. Their compatibility with standard piping systems and ease of installation make ANSI B16.5 Class 150 Flanges a top choice for industries where reliability, maintenance convenience, and long-term service are crucial.

ANSI B16.5 Class 150 Flange In Thailand, Raised Face Class 150 Flanges United kingdom, 150 LB Plate Flange Bangkok, ANSI B16.5 150 LBS Pipe Flange Pattaya, ANSI B16.5 Class 150 Forged Flanges Chiang Mai, AWWA Class 150 Flanges Rayong, 150 LBS Flange Manufacturer in Nonthaburi.

Types of ANSI B16.5 Class 150 Flanges

Are Custom Sizes Available for ANSI B16.5 Class 150 Flanges?

Yes, we offer custom sizes for ANSI B16.5 Class 150 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
