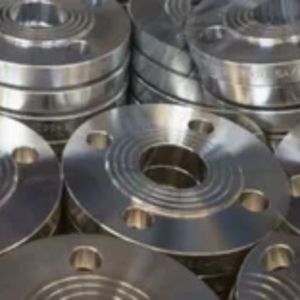

Supachok Flanges, a reputable manufacturer and supplier based in Bangkok, Thailand, specializes in top-notch **ANSI B16.36 Flanges** that adhere to international standards. Renowned for their precision engineering, durability, and resistance to corrosion, these flanges are crafted for high-pressure and critical industrial applications. Supachok Flanges guarantees products that offer dependable performance, extended service life, and leak-proof connections. You’ll find ANSI B16.36 Flanges widely used in the chemical, petrochemical, pharmaceutical, food, and marine industries, ensuring safe and efficient operations in piping systems. Their sturdy design and exceptional material quality make them perfect for challenging environments where reliability and safety are crucial.
These ANSI B16.36 Flanges are made from high-grade alloys, mainly carbon steel or stainless steel, with added elements like chromium, nickel, and molybdenum to boost corrosion resistance and mechanical strength. They showcase impressive tensile and yield strength, solid hardness, and dependable elongation, ensuring they hold up under high-pressure and high-temperature conditions. Their toughness and resistance to scaling, pitting, and crevice corrosion make them ideal for demanding industrial settings. Plus, they offer good weldability and formability, making installation and integration into various piping systems a breeze.

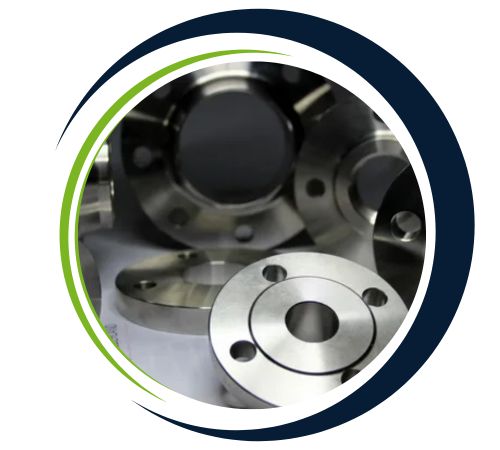

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of ANSI B16.36 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Threaded / Forged / Plate /Screwed |
| Flange supporting material | Ring Joint, Gasket, Flange Bolts |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Most Common Types |
|
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF),Large Male-Female (LMF), Flat Face (FF),Small Male-Female (SMF), Lap-Joint Face (LJF), Large Tongue & Groove, Small Tongue, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations Threaded Flange, Socketweld Flange, Slip-On Flange, Blind Flange, Weld Neck Flange |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Press machine, electric bevelling machine, Pushing Machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| NPS | O | C | R | X | A | Y | TT | No. of holes | Diameter of holes | Diameter of bolts | Diameter of bolt circle | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | 1″ | 4.88 | 1.5 | 2 | 2.12 | 1.32 | 3.25 | 01/04/07 | 4 | 0.69 | 5/8″ | 3.5 |
| Millimeter | 124 | 38.1 | 50.8 | 53.8 | 33.5 | 82.6 | 6.4 | 17.5 | 15.9 | 88.9 | ||
| Inch | 1 1/2″ | 6.12 | 1.5 | 2.88 | 2.75 | 1.9 | 3.38 | 01/04/07 | 4 | 0.81 | 3/4″ | 4.5 |
| Millimeter | 155.4 | 38.1 | 73.2 | 69.9 | 48.3 | 85.9 | 6.4 | 20.6 | 19.1 | 114.3 | ||
| Inch | 2″ | 6.5 | 1.5 | 3.62 | 3.31 | 2.38 | 3.38 | 01/04/07 | 8 | 0.69 | 5/8″ | 5 |
| Millimeter | 165.1 | 38.1 | 91.9 | 84.1 | 60.5 | 85.9 | 6.4 | 17.5 | 15.9 | 127 | ||
| Inch | 2 1/2″ | 7.5 | 1.5 | 4.12 | 3.94 | 2.88 | 3.5 | 01/04/07 | 8 | 0.81 | 3/4″ | 5.88 |
| Millimeter | 190.5 | 38.1 | 104.6 | 100.1 | 73.2 | 88.9 | 6.4 | 20.6 | 19.1 | 149.4 | ||
| Inch | 3″ | 8.25 | 1.5 | 5 | 4.62 | 3.5 | 3.5 | 03/08/07 | 8 | 0.81 | 3/4″ | 6.62 |
| Millimeter | 209.6 | 38.1 | 127 | 117.3 | 88.9 | 88.9 | 9.5 | 20.6 | 19.1 | 168.1 | ||
| Inch | 4″ | 10 | 1.5 | 6.19 | 5.75 | 4.5 | 3.62 | 01/02/07 | 8 | 0.81 | 3/4″ | 7.88 |
| Millimeter | 254 | 38.1 | 157.2 | 146.1 | 114.3 | 91.9 | 12.7 | 20.6 | 19.1 | 200.2 | ||
| Inch | 6″ | 12.5 | 1.5 | 8.5 | 8.12 | 6.63 | 3.94 | 01/02/07 | 12 | 0.88 | 3/4″ | 10.62 |
| Millimeter | 317.5 | 38.1 | 215.9 | 206.2 | 168.4 | 100.1 | 12.7 | 22.4 | 19.1 | 269.7 | ||
| Inch | 8″ | 15 | 1.62 | 10.62 | 10.25 | 8.63 | 4.38 | 01/02/07 | 12 | 1 | 7/8″ | 13 |
| Millimeter | 381 | 41.1 | 269.7 | 260.4 | 219.2 | 111.3 | 12.7 | 25.4 | 22.2 | 330.2 | ||
| Inch | 10″ | 17.5 | 1.88 | 12.75 | 12.62 | 10.75 | 4.62 | 01/02/07 | 16 | 1.12 | 1″ | 15.25 |
| Millimeter | 444.5 | 47.8 | 323.9 | 320.5 | 273.1 | 117.3 | 12.7 | 28.4 | 25.4 | 387.4 | ||
| Inch | 12″ | 20.5 | 2 | 15 | 14.75 | 12.75 | 5.12 | 01/02/07 | 16 | 1.25 | 1 1/8″ | 17.75 |
| Millimeter | 520.7 | 50.8 | 381 | 374.7 | 323.9 | 130 | 12.7 | 31.8 | 28.6 | 450.9 | ||
| Inch | 14″ | 23 | 2.12 | 16.25 | 16.75 | 14 | 5.62 | 01/02/07 | 20 | 1.25 | 1 1/8″ | 20.25 |
| Millimeter | 584.2 | 53.8 | 412.8 | 425.5 | 355.6 | 142.7 | 12.7 | 31.8 | 28.6 | 514.4 | ||
| Inch | 16″ | 25.5 | 2.25 | 18.5 | 19 | 16 | 5.75 | 01/02/07 | 20 | 1.38 | 1 1/4″ | 22.5 |
| Millimeter | 647.7 | 57.2 | 469.9 | 482.6 | 406.4 | 146.1 | 12.7 | 35.1 | 31.8 | 571.5 | ||
| Inch | 18″ | 28 | 2.38 | 21 | 21 | 18 | 6.25 | 01/02/07 | 24 | 1.38 | 1 1/4″ | 24.75 |
| Millimeter | 711.2 | 60.5 | 533.4 | 533.4 | 457.2 | 158.8 | 12.7 | 35.1 | 31.8 | 628.7 | ||
| Inch | 20″ | 30.5 | 2.5 | 23 | 23.12 | 20 | 6.38 | 01/02/07 | 24 | 1.38 | 1 1/4″ | 27 |
| Millimeter | 774.7 | 63.5 | 584.2 | 587.2 | 508 | 162.1 | 12.7 | 35.1 | 31.8 | 685.8 | ||
| Inch | 24″ | 36 | 2.75 | 27.25 | 27.62 | 24 | 6.62 | 01/02/07 | 24 | 1.62 | 1 1/2″ | 32 |
| Millimeter | 914.4 | 69.9 | 692.2 | 701.5 | 609.6 | 168.1 | 12.7 | 41.1 | 38.1 | 812.8 |
| Size in In. | Size in Millimeter | Outer Diameter | Flange Thickness | Hub OD | Weld Neck OD | WN Lengtd | RF Dia. | RF Height | PCD | Hole dia | No of Bolts | Bolt Size UNC | RF Stud Lengtd | Hole Size | ISO Stud Size | Weight in kg |
| A | B | C | D | E | F | G | H | I | ||||||||
| 1 | 25 | 125 | 36.6 | 54 | 33.4 | 81 | 50.8 | 2 | 88.9 | 6.4 | 4 | 5/8 | 125 | 3/4 | M16 | 4.5 |
| 1 1/2 | 40 | 155 | 36.6 | 70 | 48.3 | 84 | 73 | 2 | 114.3 | 6.4 | 4 | 3/4 | 135 | 7/8 | M20 | 6.5 |
| 2 | 50 | 165 | 36.6 | 84 | 60.3 | 84 | 92.1 | 2 | 127 | 6.4 | 8 | 5/8 | 125 | 3/4 | M16 | 7 |
| 2 1/2 | 65 | 190 | 36.6 | 100 | 73 | 87 | 104.8 | 2 | 149.2 | 6.4 | 8 | 3/4 | 135 | 7/8 | M20 | 7.5 |
| 3 | 80 | 210 | 36.6 | 117 | 88.9 | 87 | 127 | 2 | 168.3 | 9.5 | 8 | 3/4 | 135 | 7/8 | M20 | 9.4 |
| 4 | 100 | 255 | 36.6 | 146 | 114.3 | 90 | 157.2 | 2 | 200 | 12.7 | 8 | 3/4 | 135 | 7/8 | M20 | 13.2 |
| 6 | 150 | 320 | 36.6 | 206 | 168.3 | 98 | 215.9 | 2 | 269.9 | 12.7 | 12 | 3/4 | 135 | 7/8 | M20 | 14.6 |
| 8 | 200 | 380 | 39.7 | 260 | 219.1 | 110 | 269.9 | 2 | 330.2 | 12.7 | 12 | 7/8 | 145 | 1 | M24 | 30 |
| 10 | 250 | 445 | 46.1 | 321 | 273 | 116 | 323.8 | 2 | 387.3 | 12.7 | 16 | 1 | 165 | 1 1/8 | M27 | 41 |
| 12 | 300 | 520 | 49.3 | 375 | 323.8 | 129 | 381 | 2 | 450.8 | 12.7 | 16 | 1 1/8 | 180 | 1 1/4 | M30 | 62 |
| 14 | 350 | 585 | 52.4 | 425 | 355.6 | 141 | 412.8 | 2 | 514.4 | 12.7 | 20 | 1 1/8 | 185 | 1 1/4 | M30 | 84 |
| 16 | 400 | 650 | 55.6 | 483 | 406.4 | 144 | 469.9 | 2 | 571.5 | 12.7 | 20 | 1 1/4 | 195 | 1 3/8 | M33 | 111 |
| 18 | 450 | 710 | 58.8 | 533 | 457 | 157 | 533.4 | 2 | 628.6 | 12.7 | 24 | 1 1/4 | 205 | 1 3/8 | M33 | 138 |
| 20 | 500 | 775 | 62 | 587 | 508 | 160 | 584.2 | 2 | 685.8 | 12.7 | 24 | 1 1/4 | 215 | 1 3/8 | M33 | 171 |
| 24 | 600 | 915 | 68.3 | 702 | 610 | 167 | 692.2 | 2 | 812.8 | 12.7 | 24 | 1 |
You’ll find ANSI B16.36 Flanges commonly used in industries that need high-pressure, leak-proof connections. They’re frequently found in chemical processing plants, oil and gas refineries, petrochemical facilities, and power generation plants. In the pharmaceutical and food sectors, they help maintain hygienic and contamination-free operations. These flanges are also well-suited for marine and water treatment applications. Typically installed in pipelines, reactors, heat exchangers, and storage tanks, ANSI B16.36 Flanges ensure reliable sealing, safe operation, and long-lasting performance in tough conditions, making them essential components in various industrial applications.
Yes, we offer custom sizes for ANSI B16.36 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
