Supachok Flanges, a well-respected manufacturer and supplier located in Bangkok, Thailand, has made a name for itself by producing top-notch SF440 Flanges that meet international quality standards. Thanks to their cutting-edge manufacturing technology and rigorous quality control, the company guarantees precision, strength, and durability in every single product. SF440 Flanges are designed to perform reliably even in tough industrial settings, boasting exceptional mechanical strength and resistance to corrosion. Supachok Flanges is dedicated to providing cost-effective and timely solutions while ensuring customer satisfaction, making them a trusted partner for industries that need reliable flange connections both locally and globally.
These SF440 Flanges are crafted from carbon steel, with carefully controlled levels of carbon, manganese, silicon, phosphorus, and sulfur. This specific blend results in excellent weldability, good machinability, and moderate resistance to corrosion. Their mechanical properties include high tensile and yield strength, outstanding toughness, and durability even under high pressure and temperature conditions. Additionally, SF440 Flanges offer dependable resistance to stress and fatigue, ensuring a long service life. The combination of balanced chemistry and robust mechanical performance makes these flanges perfect for structural, mechanical, and piping applications in various demanding environments.

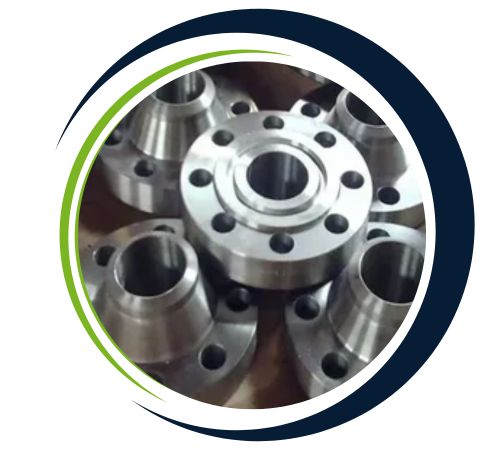

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Sf440 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| Standards | API7S-15, API7S-43, API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Anti-rust Paint, Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Yellow Transparent |
| Most common types | Forged / Threaded / Screwed / Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique |
|
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Hydrostatic testing machine, X-ray detector, Direct-reading Spectrograph, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Bending machine, Pushing Machine,Press machine, electric bevelling machine, Sand-blasting machine etc |
| Origin | Indian / West Europe / Japan / USA / Korean |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc.
: -BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange,
GOST Flange, PSI Flange
|
| Uses & application |
|
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Fe | Si | C | S | P | |
| SF440 | min. | 99.25 | – | – | – | – |
| max. | 100 | 0.4 | 0.26 | 0.050 | 0.040 | |
| Grade | Yield Strength min. (Mpa) | Tensile Strength (Mpa) | Elongation min. % | ImpactResistancemin.[J] | |||
| Thickness ＜16 mm | Thickness ≥16mm | Thickness | Thickness | Thickness | |||
| ＜5mm | 5-16mm | ≥16mm | |||||
| SF440 | 245 | 235 | 400-510 | 21 | 17 | 21 | – |
SF440 Flanges find extensive use across multiple industries, including oil and gas, petrochemical, shipbuilding, power generation, and construction. They are especially effective for connecting pipes, valves, pumps, and other equipment in systems that require secure sealing and high performance. Their ability to handle medium to high-pressure conditions makes them ideal for refineries, water treatment facilities, and industrial piping networks. SF440 Flanges are also utilized in boilers, pressure vessels, and heavy machinery. Their strength, versatility, and durability ensure safe, efficient, and long-lasting operation in critical industrial applications around the world.
Yes, we offer custom sizes for Sf440 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
