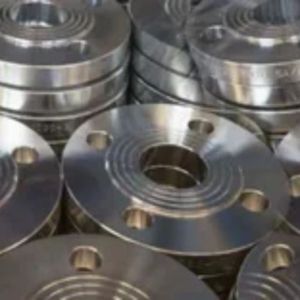

Supachok Flanges, based in Bangkok, Thailand, stands out as a top-notch manufacturer and supplier of high-quality C22.8 Flange 20. Renowned for their precision engineering and exceptional durability, these flanges meet international standards and are built to perform reliably in high-pressure and moderate-temperature piping systems. Each C22.8 Flange 20 is crafted to deliver outstanding strength, corrosion resistance, and a long service life. They find extensive use in industries like oil and gas, petrochemical, chemical, and water treatment, providing secure, leak-proof connections that are crucial for piping networks where efficiency, safety, and reliability are non-negotiable.
Manufactured from high-grade carbon steel or alloy steel, C22.8 Flange 20 is designed to excel in demanding industrial settings. These flanges boast impressive mechanical properties, including high tensile strength, toughness, and durability under pressure. They are engineered to maintain their structural integrity even in moderate temperatures and high pressures, while also resisting corrosion and wear. Thanks to precision manufacturing, they feature accurate dimensions, smooth surfaces, and a reliable fit with pipes, valves, and equipment, ensuring long-term performance and secure connections in industrial piping systems.
Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of C22.8 Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Specifications | C22.8 |
| ASME B16.5 Carbon Steel C22.8 Flanges size range | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Carbon Steel C22.8 Flanges Standards | ANSI/ASME B16.5, B16.48, BS4504, B16.47 Series A & B, EN-1092, BS 10, DIN, ASME Flanges, ANSI Flanges, DIN Flanges, BS Flanges, GOST Flanges,EN Flanges |
| Carbon Steel C22.8 Flanges Standard DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| Carbon Steel C22.8 Flanges Standard ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Carbon Steel C22.8 Flanges Standard UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Carbon Steel C22.8 Flanges Standard JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| Carbon Steel C22.8 Flanges Standard EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Main Types | Forged / Threaded / Screwed / Plate |
| Flange supporting material | Gasket, Ring Joint, Flange Bolts |
| Element / Component | Composition % |
| Carbon ( C ) | 0.18 – 0.23 |
| Manganese ( Mn ) | 0.40 – 0.90 |
| Phosphorus ( P ) | 0.035 max |
| Sulphur ( S ) | 0.030 max |
| Silicon ( Si ) | 0.40 max |
| Aluminium ( Al ) | 0.015 – 0.050 |
| Chromium ( Cr ) | 0.30 max |
| Items | Value |
| Yield Strength ReH N/mm2 | 240 min |
| Tensile Strength Rm N/mm2 | 410 – 540 |
| Elongation ( A ) | 25% min |
| Impact Test ( J ) | 44 min |
C22.8 Flange 20 is commonly found in pipelines, pressure vessels, chemical processing plants, petrochemical facilities, and water treatment systems. They are perfect for connecting pipes, valves, pumps, and other equipment in high-pressure applications, guaranteeing leak-proof and secure joints. These flanges not only support safe and efficient operations but also help reduce maintenance needs. With their mechanical strength, corrosion resistance, and durability, C22.8 Flange 20 is vital for critical industrial applications, delivering long-lasting performance, operational reliability, and safety in environments where precision and durability are key.
Yes, we offer custom sizes for C22.8 Flange to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
