Supachok Flanges, a prominent manufacturer and supplier located in Bangkok, Thailand, has built a solid reputation for providing top-notch P250GH Flanges that adhere to international standards. With a strong emphasis on precision engineering, cutting-edge production methods, and rigorous quality control, the company guarantees exceptional performance and durability in every flange they produce. The P250GH Flanges from Supachok are specifically crafted for applications in pressure vessels, boilers, and piping systems where high strength and reliability are crucial. Their dedication to excellence, prompt delivery, and customer satisfaction has established them as a trusted partner across various industries around the globe.
These P250GH Flanges are constructed from high-grade non-alloy steel, featuring carefully controlled levels of carbon, manganese, silicon, and trace elements that boost their strength and heat resistance. They showcase impressive tensile strength, yield strength, and toughness, making them ideal for high-temperature and high-pressure scenarios. Their mechanical properties include excellent weldability, durability, and oxidation resistance, ensuring secure and long-lasting connections even in challenging environments. The combination of their robust composition and dependable strength makes P250GH Flanges a reliable choice for heavy-duty industrial applications.

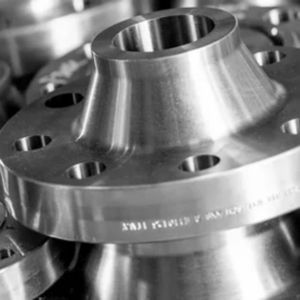

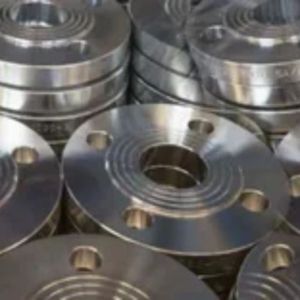

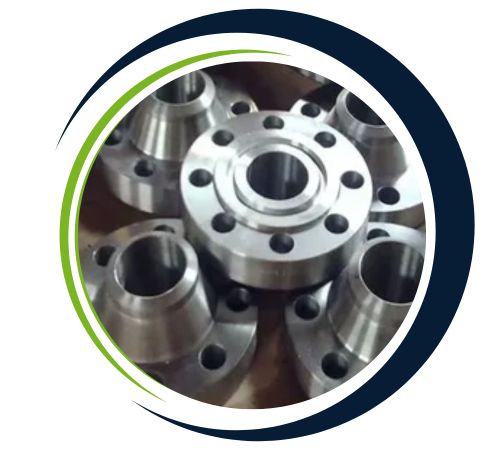

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of P250gh Flange, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Size Chart | 1/2 inch (15 Nominal Bore) to 48 Inch (1200 Nominal Bore) |
|---|---|
| Pressure Rating ANSI | Class 600, 900, 150, 2500, 300, 1500 LBS |
| Pressure Calculation in DIN | 16, 6, 25, 40, 10 Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| JIS Standards | 5, 10, 16 20, 30, 40, 63 K |
| UNI Standards | 6, 10, 16, 25, 40 Bar |
| EN Standards | 6, 10, 16, 25, 40 Bar |
| Coating | Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated,Oil Black Paint, Yellow Transparent |
| Most common types | Screwed, Forged, Threaded, Plate |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report , 100% Radiography Test Report etc |
| Production technique | Forged, Heat treated and machined |
| Flange Face Type | Small Tongue, Lap-Joint Face, Raised Face, Ring Type Joint, Flat Face, Large Male-Female, Small Male-Female, Large Tongue & Groove Flanges manufacturer and Supplier |
| Flanges Marking | All Flanges are marked as follows: Supplier or Manufacturer’s Name, Size, Class, Bore, Dimension, Material, Heat No. Or according to the customer’s request. |
| Test | Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Direct-reading Spectrograph, Magnetic particle detector |
| Equipment | Bending machine, Sand-blasting machine, Pushing Machine,Press machine, electric bevelling machine etc |
| Carbon | Silicon | Manganese | Nickel | Phosphorus | Sulfur | Chromium | Vanadium | niobium | Titanium | Aluminum | – |
| 0.18 – 0.23 | max 0.4 | 0.3 – 0.9 | max 0.3 | max 0.025 | max 0.015 | max 0.3 | max 0.02 | max 0.01 | max 0.03 | 0.015 – 0.05 | Cr+Cu+Mo+Ni < 0.7 |
| Nominal thickness (mm): | to 150 | ||
| Rm – Tensile strength (MPa) (+N) | 410-540 | ||
| Nominal thickness (mm): | to 50 | 50 – 100 | 100 – 150 |
| ReH – Minimum yield strength (MPa) (+N) | 250 | 240 | 230 |
| KV – Impact energy (J) longitud., | +20° 47 | ||
| Nominal thickness (mm): | to 150 | ||
| A – Min. elongation at fracture (%) (+N) | 25 |
You’ll find P250GH Flanges widely utilized in sectors like petrochemical, oil and gas, power generation, shipbuilding, and chemical processing. They are particularly well-suited for pressure vessels, heat exchangers, and boiler systems where resistance to high temperatures and pressure is vital. These flanges create secure connections in pipelines that transport steam, gas, and other fluids under extreme conditions. Their durability and versatility make them indispensable in industrial plants, refineries, and mechanical setups that demand safe and efficient performance. Plus, P250GH Flanges are designed for easy maintenance and replacement, making them a practical choice for long-term industrial use.
Yes, we offer custom sizes for P250gh Flange to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
