DIN 2543 PN16 Slip On Flanges Manufacturer and Supplier in Bangkok, Thailand

Supachok Flanges, a reputable manufacturer and supplier located in Bangkok, Thailand, focuses on crafting high-quality DIN 2543 PN16 Slip On Flanges that are built for reliability, durability, and a precise fit in medium-pressure piping systems. These flanges are designed for easy installation and create secure, leak-proof connections, ensuring smooth operation even in demanding industrial settings. Adhering to strict DIN standards, the DIN 2543 PN16 Slip On Flanges find their place in various industries, including marine, chemical, petrochemical, water treatment, and power generation. Supachok Flanges offers cost-effective, precision-engineered solutions that promise long-lasting performance, safety, and operational efficiency for essential engineering and industrial applications.

DIN 2642 PN10 Lapped Joint Pipe Flange In Thailand, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Bangkok, Raised Face DIN 2642 PN10 LJ Flanges Pattaya, Best Price of DIN 2642 PN10 Lap Joint Flange Chiang Mai, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Rayong, DIN 2642 PN10 Lapped Joint Flange In Nonthaburi.

DIN 2543 PN16 Slip On Flanges

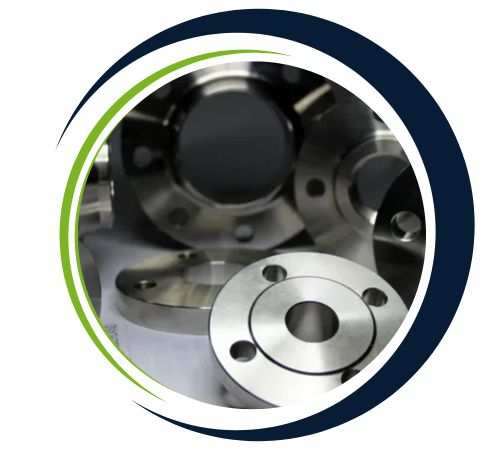

DIN 2642 PN10 Lapped Joint Pipe Flange

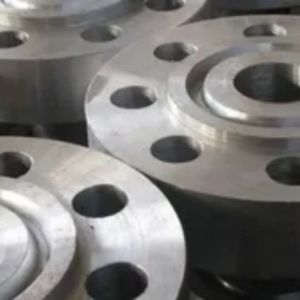

DIN 2642 PN10 Lap Joint Plate Flange

Made from top-notch carbon steel, stainless steel, or alloy steel, DIN 2543 PN16 Slip On Flanges boast excellent resistance to pressure, corrosion, and temperature fluctuations. Their robust composition guarantees durability in medium-pressure environments while protecting against wear and chemical damage. On a mechanical level, these flanges showcase impressive tensile and yield strength, toughness, and fatigue resistance. The slip-on design simplifies the fitting and welding process onto pipes, resulting in secure and leak-proof joints. With a blend of strong material properties and precise manufacturing, DIN 2543 PN16 Slip On Flanges ensure reliable mechanical performance across various industrial piping systems.

DIN 2642 PN10 Lap Joint Flanges Supplier in Thailand, DIN 2642 PN10 Lapped Joint Flanges Stockist in United kingdom, DIN 2642 PN10 Lap Joint Flanges Manufacturer in Bangkok, DIN 2642 PN10 Lap Joint Flanges Supplier in Pattaya, DIN 2642 PN10 Lapped Joint Flanges Stockist in Chiang Mai, DIN 2642 PN10 LJ Flanges Manufacturer in Rayong, DIN 2543 PN16 Slip On Flanges Nonthaburi.

Largest DIN 2543 PN16 Slip On Flanges in Bangkok, Thailand

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of DIN 2543 PN16 Slip On Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

DIN 2543 PN16 Slip On Flanges Specification

Size Chart	1/2″ (15 NB) To 48″ (1200NB)
Coating Flanges Faces	Zinc Plated, Oil Black Paint, Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint
Design For Size	DIN, EN, ASA, PN, JIS, BS, ANSI, ASME
Pressure Rating Table	Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Supporting Flanges Material	Flanges Bolts, Gasket, Ring Joint
Connect Type Type	FF, RTJ, SMF, LMF, RF, LJF
Production Process	Forged, Heat Treated and Machined
Standard	ASME B16.38 Flange, DIN Flange, ISO Flange, JIS Flange, PN Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Machining Equipment	Bending machine, Sand-blasting machine, Press machine, Pushing Machine, Electric bevelling machine etc

DIN 2543 PN16 Slip On Flanges Dimensions

Rated	d1		D	b	k	h1	d3	s	r	h2	d4	f	Holes	Thread	d2	Kg
Diameter	ISO Series	DIN Series
15	–	20	95	14	65	35	30	2	4	6	45	2	4	M 12	14	0,648
	21,3	–					32
20	–	25	105	16	75	38	38	2,3	4	6	58	2	4	M 12	14	0,952
	26,9	–					40
25	–	30	115	16	85	38	42	2,6	4	6	68	2	4	M 12	14	1,14
	33,7	–					45
32	–	38	140	16	100	40	52	2,6	6	6	78	2	4	M 16	18	1,69
	42,4	–					56
40	–	44,5	150	16	110	42	60	2,6	6	7	88	3	4	M 16	18	1,86
	48,3	–					64
50	–	57	165	18	125	45	72	2,9	6	8	102	3	4	M 16	18	2,53
	60,3	–					75
65	76,1	–	185	18	145	45	90	2,9	6	10	122	3	4	M 16	18	3,06
80	88,9	–	200	20	160	50	105	3,2	8	10	138	3	8	M 16	18	3,7
100	–	108	220	20	180	52	125	3,6	8	12	158	3	8	M 16	18	4,62
	114,3	–					131
125	–	133	250	22	210	55	150	4	8	12	188	3	8	M 16	18	6,3
	139,7	–					156
150	–	159	285	22	240	55	175	4,5	10	12	212	3	8	M 20	22	7,75
	168,3	–					184
200	219,1	–	340	24	295	62	235	5,9	10	16	268	3	8	M 20	22	11,3
250	–	267	395	26	350	68	285	6,3	12	16	320	3	12	M 20	22	14,7
	273	–					292
300	323,9	–	445	26	400	68	344	7,1	12	16	370	4	12	M 20	22	17,4
350	355,6	–	505	26	460	68	385	7,1	12	16	430	4	16	M 20	22	23,6
	–	368														21,6
400	406,4	–	565	26	515	72	440	7,1	12	16	482	4	16	M 24	26	28,6
	–	419														26,2
(450)	457	–	615	28	565	72	488	7,1	12	16	532	4	20	M 24	26	31,5
500	508	–	670	28	620	75	542	7,1	12	16	585	4	20	M 24	26	38,1
600	610	–	780	28	725	80	642	7,1	12	18	685	5	20	M 27	30	44,6
700	711	–	895	30	840	80	745	8	12	18	800	5	24	M 27	30	62,4
800	813	–	1015	32	950	90	850	8	12	18	905	5	24	M 30	33	84,1
900	914	–	1115	34	1050	95	950	10	12	20	1005	5	28	M 30	33	98,5
1000	1016	–	1230	34	1160	95	1052	10	16	20	1110	5	28	M 33	36	115

These flanges are widely utilized in industries that demand dependable, durable, and easily installed pipeline connections. You’ll often find them in water treatment systems, HVAC setups, marine applications, and offshore pipelines. Chemical and petrochemical plants rely on them for managing medium-pressure fluids and corrosive substances. Power generation facilities use these flanges in cooling water systems, boilers, and heat exchangers. They also play a crucial role in oil and gas, food processing, and general industrial piping where secure, leak-proof connections are essential. With their strength and resistance to corrosion, these flanges are a go-to choice for many critical applications.

DIN 2642 PN10 Lapped Joint Pipe Flange In Thailand, DIN 2642 PN10 Lap Joint Plate Flange United kingdom, DIN 2642 PN10 Standards Lap Joint Flanges Bangkok, Raised Face DIN 2642 PN10 LJ Flanges Pattaya, Best Price of DIN 2642 PN10 Lap Joint Flange Chiang Mai, Stainless Steel DIN 2642 PN10 Lap Joint Flanges Manufacturer in Rayong, DIN 2642 PN10 Lapped Joint Flange In Nonthaburi.

Types of DIN 2543 PN16 Slip On Flanges

Are Custom Sizes Available for DIN 2543 PN16 Slip On Flanges?

Yes, we offer custom sizes for DIN 2543 PN16 Slip On Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
