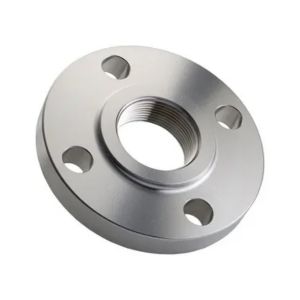

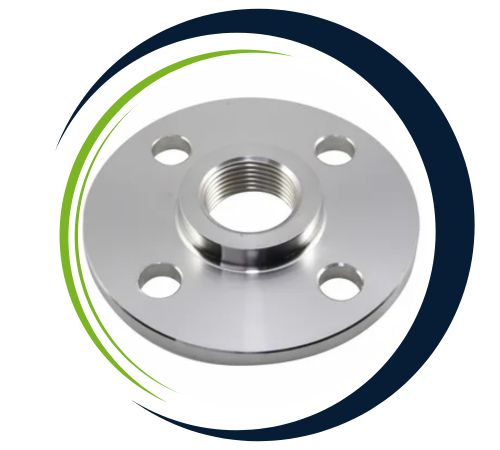

Supachok Flanges, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Stainless Steel Threaded Flanges that are built to last, offering impressive strength, durability, and resistance to corrosion. With their threaded connections, these flanges are perfect for low-pressure and non-welded piping systems, making installation a breeze. Supachok Flanges caters to various industries, including oil and gas, chemical processing, water treatment, and marine engineering, by delivering reliable and cost-effective solutions. Thanks to their advanced manufacturing techniques, rigorous quality control, and a focus on customer satisfaction, the company guarantees long-lasting performance and dependable solutions for clients both locally and internationally.
These Stainless Steel Threaded Flanges are made from a blend of iron, chromium (16–20%), nickel (8–12%), along with trace amounts of molybdenum, manganese, and carbon. This unique composition gives them outstanding resistance to corrosion and oxidation, especially in environments rich in chlorides and chemicals. On the mechanical side, they boast high tensile and yield strength, solid hardness, and excellent fatigue resistance. Their threaded design allows for easy assembly without the need for welding, while ensuring durability, precise dimensions, and reliable performance under moderate pressure and temperature conditions in various industrial applications.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |

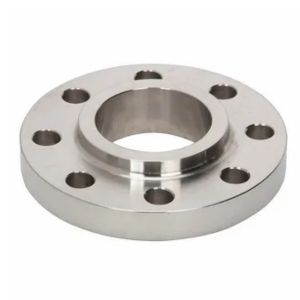

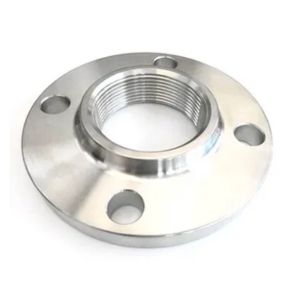

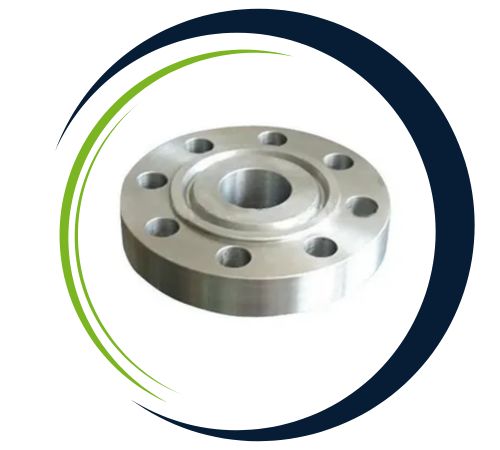

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 AS 2129: Table D; Table E; Table H ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings ANSI : ANSI B16.5, ANSI B16.47(API605), MSS SP44, ANSI B16.36, ANSI B16.48 ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 American standard (ANSI) German (DIN) British standard (BS) DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM A182 F316 Stainless Steel Flanges The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

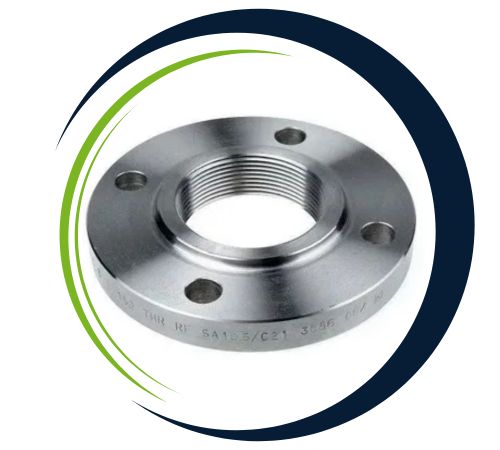

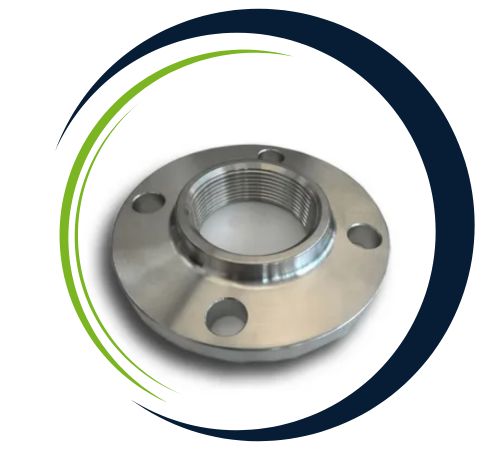

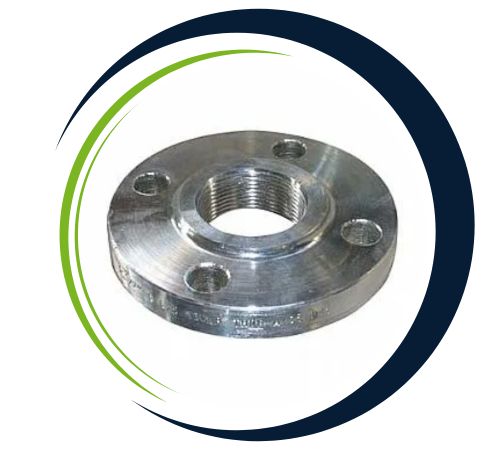

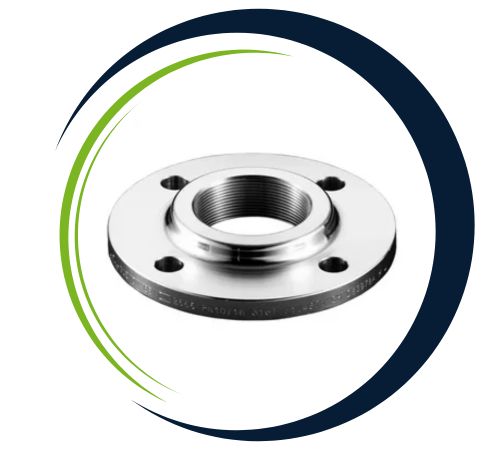

| Grades | SS 304, 304L, 304H, 310, 310S, 316, 316L, 316H, 316Ti, 317, 317L, 321, 321H, 347, 347H, 446, 904L |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Stainless Steel Threaded Flanges, including weld neck flanges, slip-on flanges, blind flanges and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Stainless Steel Threaded Flanges commonly used in piping systems where welding isn’t an option. In the oil and gas sector, they’re utilized in refineries, pipelines, and storage systems. The chemical and petrochemical industries rely on them in processing plants, reactors, and fluid systems due to their corrosion-resistant properties. In water treatment and plumbing, they facilitate secure connections without welding. Marine applications include shipbuilding and seawater pipelines. Additionally, they’re employed in fire protection systems, small-diameter piping, and other critical industries that require safe, quick, and leak-proof connections.
| USA | France | Germany | Germany | Italy | Japan | Russia | Spain | Sweden | Thailand | European Union |
| AISI | AFNOR | DIN 17006 | W.N. 17007 | UNI | JIS | GOST | UNE | SIS | BSI | EURONORM |
| 304 | Z 6 CN 18-09 | X 5 CrNi 18 10 X 5 CrNi 18 12 | 1.4301 1.4303 | X 5 CrNi 1810 | SUS 304 | 08KH18N10 06KH18N11 | X 6 CrNi 19-10 | 23 32 | 304S15 304S16 | X 6 CrNi 18 10 |
| 304L | Z 2 CN 18-10 | X 2 CrNi 18 11 | 1.4306 | X 2 CrNi 1911 | SUS 304L | 03KH18N11 | X 2 CrNi 19-10 | 23 52 | 304S11 | X 3 CrNi 18 10 |
| 304H | – | – | 1.4948 | X 8 CrNi 1910 | SUS F 304H | – | X 6 CrNi 19-10 | – | – | – |
| 310 | – | X 12 CrNi 25 21 | 1.4841 | X 22 CrNi 2520 | SUH 310 | 10KH23N18 | – | – | 310S24 | – |
| 310S | Z 12 CN 25-20 | X 12 CrNi 25 20 | 1.4845 | X 5 CrNi 2520 | SUS 310S | 20KH25N20S2 | – | 23 61 | – | X 6 CrNi 25 20 |
| 316 | Z 6 CND 17-11 | X 5 CrNiMo 17 12 2 | 1.4401 | X 5 CrNiMo 1712 | SUS 316 | X 6 CrNiMo 17-12-03 | 23 47 | 316S31 | X 6 CrNiMo 17 12 2 | |
| 316 | Z 6 CND 17-12 | X 5 CrNiMo 17 13 3 | 1.4436 | X 5 CrNiMo 1713 | SUS 316 | X 6 CrNiMo 17-12-03 | 23 43 | 316S33 | X 6 CrNiMo 17 13 3 | |
| 316H | X 8 CrNiMo 1712 | SUS F 316H | X 5 CrNiMo 17-12 | |||||||
| 316H | X 8 CrNiMo 1713 | 03KH17N14M2 | X 6 CrNiMo 17-12-03 | |||||||
| 316L | Z 2 CND 17-12 | X 2 CrNiMo 17 13 2 | 1.4404 | X 2 CrNiMo 1712 | SUS 316L | X 2 CrNiMo 17-12-03 | 23 48 | 316S11 | X 3 CrNiMo 17 12 2 | |
| 316L | Z 2 CND 17-13 | X 2 CrNiMo 18 14 3 | 1.4435 | X 2 CrNiMo 1713 | X 2 CrNiMo 17-12-03 | 23 53 | 316S13 | X 3 CrNiMo 17 13 3 | ||
| Z 2 CND 17-13-Az | X 2 CrNiMoN 17 13 3 | 1.4429 | X 2 CrNiMoN 1713 | 08KH17N13M2T 10KH17N13M2T | 23 75 | |||||
| Z6 CNDT 17-12 | X 6 CrNiMoTi 17 12 2 | 1.4571 | X 6 CrNiMoTi 1712 | 08KH17N13M2T 10KH17N13M2T | X 6 CrNiMoTi 17-12-03 | 23 50 | 320S31 | X 6 CrNiMoTi 17 12 2 | ||
| X 10 CrNiMoTi 18 12 | 1.4573 | X 6 CrNiMoTi 1713 | 08KH16N13M2B | X 6 CrNiMoTi 17-12-03 | 320S33 | X 6 CrNiMoTI 17 13 3 | ||||
| Z 6 CNDNb 17-12 | X 6 CrNiMoNb 17 12 2 | 1.4580 | X 6 CrNiMoNb 1712 | 09KH16N15M3B | X 6 CrNiMoNb 17 12 2 | |||||
| X 10 CrNiMoNb 18 12 | 1.4583 | X 6 CrNiMoNb 1713 | X 6 CrNiMoNb 17 13 3 | |||||||
| 317 | X 5 CrNiMo 1815 | SUS 317 | 23 66 | 317S16 | ||||||
| 317L | Z 2 CND 19-15 | X 2 CrNiMo 18 16 4 | 1.4438 | X 2 CrNiMo 1815 | SUS 317L | 23 67 | 317S12 | X 3 CrNiMo 18 16 4 | ||
| 317L | Z 2 CND 19-15 | X 2 CrNiMo 18 16 4 | 1.4438 | X 2 CrNiMo 1816 | SUS 317L | 23 67 | 317S12 | |||
| 321 | Z 6 CNT 18-10 | X 6 CrNiTi 18 10 X 12 CrNiTi 18 9 | 1.4541 1.4878 | X 6 CrNiTi 1811 | SUS 321 | 12KH18N10T | X 6 CrNiTi 18-11 | 23 37 | 321S31 | X 6 CrNiTi 18 10 |
| 321H | X 8 CrNiTi 1811 | SUS 321H | X 7 CrNiTi 18-11 | 321S20 | ||||||
| 347 | Z 6 CNNb 18-10 | X 6 CrNiNb 18 10 | 1.4550 | X 6 CrNiNb 1811 | SUS 347 | X 6 CrNiNb 18-11 | 23 38 | 347S31 | X 6 CrNiNb 18 10 | |
| 347H | X 8 CrNiNb 1811 | SUS F 347H | X 7 CrNiNb 18-11 | |||||||
| 904L | Z 12 CNDV 12-02 | 1.4939 |
| Drilling | ||||||||
|---|---|---|---|---|---|---|---|---|
| Nominal Bore Threaded Flanges | Dia.(D) | Thick.(E) | Dia.(F) | Dia.(B) | Height1(H) | Nbr | Holes | Dia.(C) |
| 1/2″ | 90 | 9.6 | 35.05 | 30 | 14 | 4 | 15.87 | 60.3 |
| 3/4″ | 100 | 11.2 | 42.92 | 38 | 14 | 4 | 15.87 | 69.9 |
| 1″ | 110 | 12.7 | 50.80 | 49 | 16 | 4 | 15.87 | 79.4 |
| 1 1/4″ | 115 | 14.3 | 63.50 | 59 | 19 | 4 | 15.87 | 88.9 |
| 1 1/2″ | 125 | 15.9 | 73.15 | 65 | 21 | 4 | 15.87 | 98.4 |
| 2″ | 150 | 17.5 | 91.94 | 78 | 24 | 4 | 19.05 | 120.7 |
| 2 1/2″ | 180 | 20.7 | 104.65 | 90 | 27 | 4 | 19.05 | 139.7 |
| 3″ | 190 | 22.3 | 127.00 | 108 | 29 | 4 | 19.05 | 152.4 |
| 3 1/2″ | 215 | 22.3 | 139.70 | 122 | 30 | 8 | 19.05 | 177.8 |
| 4″ | 230 | 22.3 | 157.22 | 135 | 32 | 8 | 19.05 | 190.5 |
| 5″ | 255 | 22.3 | 185.67 | 164 | 35 | 8 | 22.22 | 215.9 |
| 6″ | 280 | 23.9 | 215.90 | 192 | 38 | 8 | 22.22 | 241.3 |
| 8″ | 345 | 27.0 | 269.75 | 246 | 43 | 8 | 22.22 | 298.5 |
| 10″ | 405 | 28.6 | 323.85 | 305 | 48 | 12 | 25.40 | 362.0 |
| 12″ | 485 | 30.2 | 381.00 | 365 | 54 | 12 | 25.40 | 431.8 |
| 14″ | 535 | 33.4 | 412.75 | 400 | 56 | 12 | 28.57 | 476.3 |
| 16″ | 595 | 35.0 | 469.90 | 457 | 62 | 16 | 28.57 | 539.8 |
| 18″ | 635 | 38.1 | 533.40 | 505 | 67 | 16 | 31.75 | 577.9 |
| 20″ | 700 | 41.3 | 584.20 | 559 | 71 | 20 | 31.75 | 635.0 |
| 24″ | 815 | 46.1 | 692.15 | 663 | 81 | 20 | 34.92 | 749.3 |
|
Pipe Normal Diam. |
O.D. Flange |
Thk. Of Flange Min |
Diam.
of
Hub |
Diameter of Raised Face |
Length Hub.Y |
Thread Length |
Diam.
of Bolt
Circle |
Diam.
of Bolt
Holes |
Number
of Bolts |
Diam. of
Bolts
(inch) |
KG |
LB |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
inch |
dn |
O |
C |
X |
G |
Y |
T |
BC |
BH |
BN |
BD |
||
|
1/2″ |
15 |
89.00 |
11.20 |
30.20 |
35.10 |
15.70 |
15.70 |
60.50 |
15.80 |
4 |
1/2″ |
0.4 |
0.9 |
|
3/4″ |
20 |
98.50 |
12.70 |
38.10 |
42.90 |
15.70 |
15.70 |
69.90 |
15.80 |
4 |
1/2″ |
0.7 |
1.5 |
|
1″ |
25 |
108.00 |
14.20 |
49.30 |
50.80 |
17.50 |
17.50 |
79.30 |
15.80 |
4 |
1/2″ |
0.8 |
1.8 |
|
1-1/4″ |
32 |
117.50 |
15.70 |
58.70 |
63.50 |
20.60 |
20.60 |
88.90 |
15.80 |
4 |
1/2″ |
1.2 |
2.6 |
|
1-1/2″ |
40 |
127.00 |
17.50 |
65.00 |
73.20 |
22.40 |
22.40 |
98.60 |
15.80 |
4 |
1/2″ |
1.5 |
3.3 |
|
2″ |
50 |
152.50 |
19.10 |
77.70 |
91.90 |
25.40 |
25.40 |
120.70 |
19.10 |
4 |
5/8″ |
2.3 |
5.1 |
|
2-1/2″ |
65 |
178.00 |
22.40 |
90.40 |
104.60 |
28.40 |
28.40 |
139.70 |
19.10 |
4 |
5/8″ |
3.7 |
8.1 |
|
3″ |
80 |
190.50 |
23.90 |
108.00 |
127.00 |
30.20 |
30.20 |
152.40 |
19.10 |
4 |
5/8″ |
4.1 |
9 |
|
3-1/2″ |
90 |
216.00 |
23.90 |
122.20 |
139.70 |
31.80 |
31.80 |
177.80 |
19.10 |
8 |
5/8″ |
5.1 |
11.2 |
|
4″ |
100 |
228.50 |
23.90 |
134.90 |
157.20 |
33.30 |
33.30 |
190.50 |
19.10 |
8 |
5/8″ |
5.9 |
13 |
|
5″ |
125 |
254.00 |
23.90 |
163.60 |
185.70 |
36.60 |
36.60 |
215.90 |
22.40 |
8 |
3/4″ |
7 |
15.4 |
|
6″ |
150 |
279.50 |
25.40 |
192.00 |
215.90 |
39.60 |
39.60 |
241.30 |
22.40 |
8 |
3/4″ |
8.4 |
18.5 |
|
8″ |
200 |
343.00 |
28.40 |
246.10 |
269.70 |
44.50 |
44.50 |
298.50 |
22.40 |
8 |
3/4″ |
13 |
28.6 |
|
10″ |
250 |
406.50 |
30.20 |
304.80 |
323.90 |
49.30 |
49.30 |
362.00 |
25.40 |
12 |
7/8″ |
18 |
39.5 |
|
12″ |
300 |
482.50 |
31.80 |
365.30 |
381.00 |
55.60 |
55.60 |
431.80 |
25.40 |
12 |
7/8″ |
29 |
64 |
|
14″ |
350 |
533.50 |
35.10 |
400.10 |
412.80 |
57.20 |
57.20 |
476.30 |
28.50 |
12 |
1″ |
39 |
86 |
|
16″ |
400 |
597.00 |
36.60 |
457.20 |
469.90 |
63.50 |
63.50 |
539.80 |
28.50 |
16 |
1″ |
47 |
103 |
|
18″ |
450 |
635.00 |
39.60 |
505.00 |
533.40 |
68.30 |
68.30 |
577.90 |
31.80 |
16 |
1 1/8″ |
57 |
126 |
|
20″ |
500 |
698.50 |
42.90 |
558.80 |
584.20 |
73.20 |
73.20 |
635.00 |
31.80 |
20 |
1 1/8″ |
76 |
167 |
|
24″ |
600 |
813.00 |
47.80 |
663.40 |
692.20 |
82.60 |
82.60 |
749.30 |
35.10 |
20 |
1 1/4″ |
97 |
214 |
