Supachok Flanges, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in Stainless Steel 310H Flanges that excel in high-temperature and corrosive settings. Crafted to meet international standards, these flanges boast outstanding oxidation resistance, durability, and mechanical strength, making them perfect for tough industrial applications. Supachok Flanges caters to various sectors, including petrochemicals, oil & gas, power generation, and marine engineering, by offering precision-engineered and cost-effective solutions. With state-of-the-art production facilities, strict quality control, and a commitment to customer satisfaction, the company guarantees that their Stainless Steel 310H Flanges operate reliably and efficiently in critical piping systems and equipment.
These flanges are made from iron, 24–26% chromium, 19–22% nickel, and a higher carbon content compared to standard 310, along with trace amounts of silicon, manganese, and carbon. This increased carbon enhances creep strength and stability at high temperatures. In terms of mechanics, they showcase excellent tensile and yield strength, superior creep resistance, and good toughness across varying temperatures. Their enhanced strength at elevated temperatures, combined with oxidation and corrosion resistance, ensures they maintain their shape and durability, making 310H flanges perfect for harsh industrial environments that require long-lasting reliability.
Specifications : ASTM A182 & ASME SA182
Dimensions : ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard : ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size : 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure : 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Flange Face Type : Flat Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 310H | min. | 0.04 | – | – | – | – | 24.0 | – | 19.0 | – |
| max. | 0.10 | 2.0 | 1.00 | 0.045 | 0.03 | 26.0 | 21.0 | – | ||
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 310H | 515 | 205 | 40 | 95 | 217 |

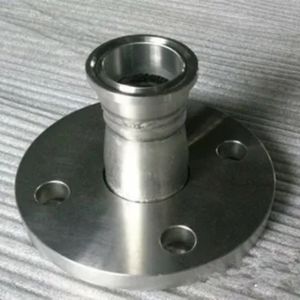

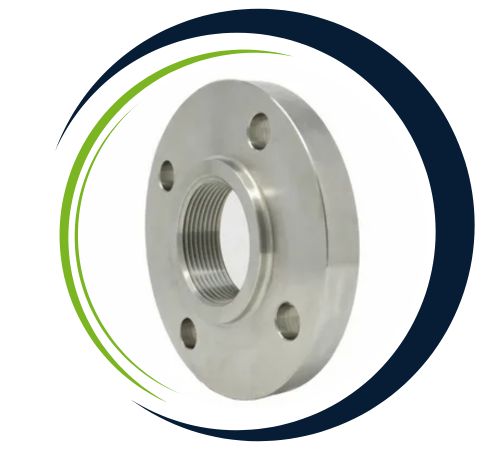

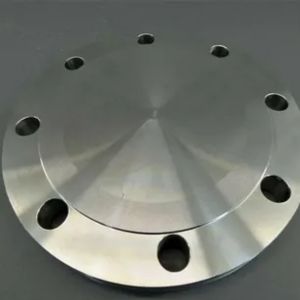

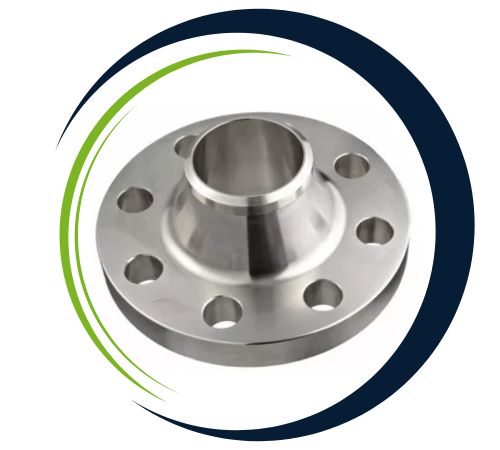

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Stainless Steel 310H flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 310H | S31009 | – | – | – | – | – | – |
Stainless Steel 310H Flanges find extensive use in industries that face extreme heat and aggressive conditions. In power generation, they are utilized in boilers, heat exchangers, and furnace systems. The petrochemical and chemical sectors rely on them for reactors, kilns, and high-temperature processing equipment. In the oil and gas industry, they are essential for refineries, pipelines, and offshore platforms that handle hot fluids. Marine industries incorporate them in shipbuilding, seawater pipelines, and desalination plants. Their exceptional strength, creep resistance, and oxidation stability make 310H flanges a vital component for demanding applications.
| ASME/ANSI B 16.5 | Welding Neck Flange, Slip on Flange, Blind Flange, High Hub Blind Flange, Socket Weld Flange, Lap Joint Flange, Threaded Flange, Ring Type Joint Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Welding Neck Flange, Blind Flange [Series A & B] |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Welding Neck Flange, Slip on Flange, Threaded Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| BS 4504 SEC 3.1 | Welding Neck Flange, Hubbed Slip on Flange, Hubbed Threaded Flange, Lapped Pipe End Flange, Plate Flange, Loose Plate Flange, Loose Plate With Weld Neck Flange, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Welding Neck Flange, Hubbed Slip-On Hubbed Threaded, Plate Flange, Loose Plate With Weld On Plate Collar, Blank Flange |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Welding Neck Flange, Socket Welding Flange, Slip-On Flange, Blind Flange, Screwed Boss Flange, Lapped Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Welding Neck Flange, Plate Slip-On Flange, Screwed Boss Flange, Slip-On Boss Flange, Blind Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Stainless Steel 310H flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
