Nickel Alloy 201 Flanges Manufacturer and Supplier in Bangkok, Thailand

Supachok Flanges, located in Bangkok, Thailand, stands out as a top-notch manufacturer and supplier of high-quality Nickel Alloy 201 Flanges. Known for their precision engineering and remarkable durability, these flanges are crafted to perform reliably even in the toughest corrosive and high-temperature settings. Supachok Flanges guarantees that every Nickel Alloy 201 Flange adheres to international standards, providing outstanding corrosion resistance, strength, and longevity. These flanges are widely utilized in industries such as chemical, petrochemical, marine, and power generation, offering safe, leak-proof connections that are essential for critical piping systems where reliability and performance are non-negotiable.

Nickel Alloy DIN 2.4068 Flanges Supplier in Rayong, Nickel Alloy 201 Flanges Nonthaburi, Nickel 201 Flanges Suppliers in Pattaya, UNS N02201 Flanges Price in Thailand, DIN 2.4068 Flanges Price List in Thailand, Alloy 201 Flanges Stockist in Thailand, UNS N02201 Flanges Price List in Nonthaburi

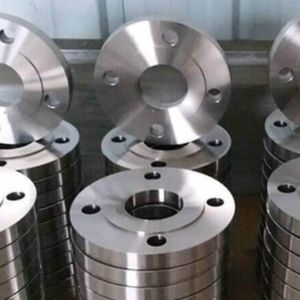

Nickel Alloy 201 Flanges

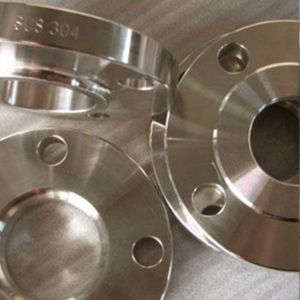

Nickel Alloy 201 Raised Face Flanges

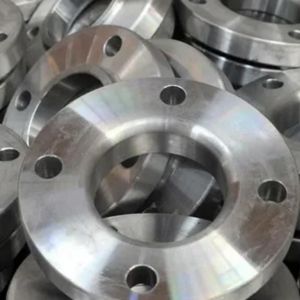

Nickel Alloy 201 RTJ Flange

The composition of Nickel Alloy 201 Flanges primarily includes high-purity nickel, along with carefully controlled amounts of carbon, manganese, and iron to boost their mechanical properties and corrosion resistance. These flanges showcase excellent tensile strength, ductility, and toughness across a broad temperature range, ensuring they maintain their structural integrity under high-pressure and high-temperature conditions. Their ability to resist various corrosive agents, including acids and alkalis, makes them a dependable choice in demanding environments. Manufactured with precise dimensions and tolerances, Nickel Alloy 201 Flanges guarantee seamless integration with piping systems, promoting long-term durability and operational efficiency.

UNS N02201 Flanges Weight Chart in Thailand, Nickel Alloy 201 Flanges Supplier in Chiang Mai, DIN 2.4068 Flanges Stockists in Pattaya, Alloy 201 Flanges Dealer in Rayong, UNS N02201 Flanges Price in Nonthaburi, Nickel Alloy 201 Flanges Weight Chart, Nickel DIN 2.4068 Flanges Weight Chart

Nickel Alloy 201 Flanges Specification

Grade	Nickel Alloy 201 / UNS N02201
Standard	ASTM B564, ASME SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2″ – 48″ (15NB – 1201NB)
Class / Pressure Rating	150 Class, 300 Class, 201 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Nickel Alloy 201 Flanges Chemical Composition

Grade	Ni	Fe	C	Mn	Si	Cu	Mg	Ti	S
Nickel 201	99.0 min	0.4 max	0.02 max	0.35 max	0.2 max	0.25 max	0.15 max	0.1 max	0.01 max

Nickel Alloy 201 Flanges Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades of Nickel Alloy 201 Flanges

STANDARD	WERKSTOFF NR.	UNS	GOST	AFNOR	JIS	BS	EN
Nickel 201	2.4068	N02201	НП-2	–	NW 2201	NA 12	NLC-Ni 99

Largest Nickel Alloy 201 Flanges Supplier in Bangkok, Thailand

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Nickel Alloy 201 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Nickel Alloy 201 Flanges find extensive application in chemical processing, marine, desalination, and power generation industries, thanks to their impressive corrosion resistance and mechanical strength. They are perfect for connecting pipes, valves, and equipment in systems that handle aggressive chemicals, seawater, and high-temperature fluids. These flanges create secure, leak-proof joints that minimize maintenance and operational risks while ensuring system reliability. Their robust nature and long service life make them ideal for critical industrial applications where safety, efficiency, and durability are crucial, ensuring smooth and uninterrupted operations.

ASTM B564 Nickel Alloy Flanges Supplier in Bangkok, Nickel Alloy 201 Flanges Exporters in Chiang Mai, UNS N02201 Flanges Manufacturers in Pattaya, DIN 2.4068 Flanges Price List in Thailand, UNS N02201 Flanges Dealer in Pattaya, Alloy 201 Flanges Manufacturers in Rayong, Nickel Alloy 201 Flanges Suppliers in Chiang Mai, DIN 2.4068 Flanges Dealers in Bangkok

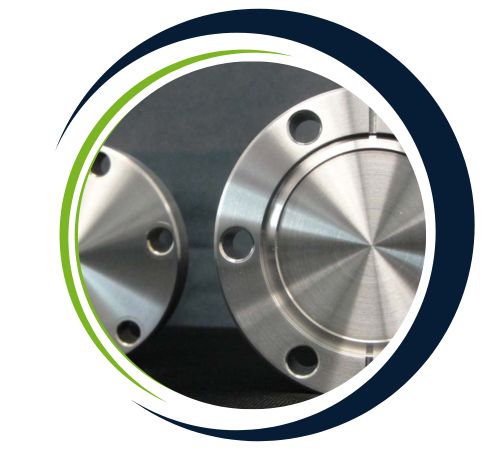

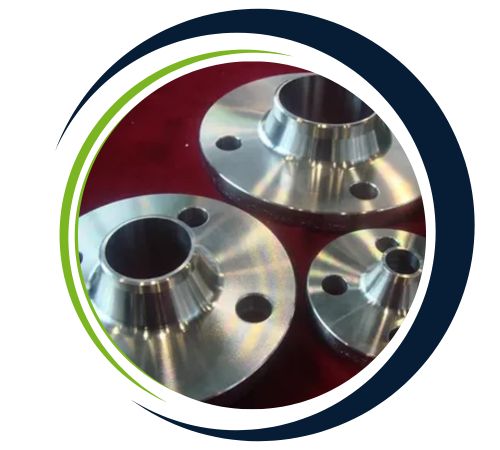

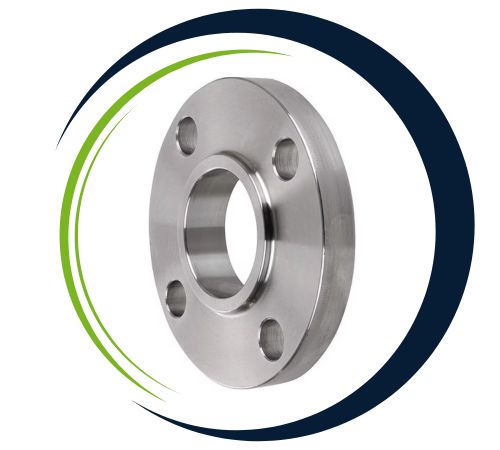

Types of Nickel Alloy 201 Flanges

Dimensions of Nickel Alloy 201 Flanges

Size in Inch	Size in mm	Outer Diameter	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	Bore	RF Diameter	RF Height	PCD	Weld Face
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	Refer Note	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6

Size of NICKEL ALLOY 201 Flanges

Normal Sizes In inch	Dimension	Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Are Custom Sizes Available for Nickel Alloy 201 Flanges?

Yes, we offer custom sizes for Nickel Alloy 201 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
