Nickel Alloy 200 Flanges Manufacturer and Supplier in Bangkok, Thailand

Supachok Flanges, based in Bangkok, Thailand, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Nickel Alloy 200 Flanges. Renowned for their outstanding quality and precision engineering, these flanges are crafted to perform consistently in harsh, corrosive, and high-temperature settings. Supachok Flanges is dedicated to providing products that adhere to international standards, ensuring exceptional durability, strength, and resistance to corrosion. Nickel Alloy 200 Flanges find their place in various industries that demand robust and long-lasting piping solutions, such as chemical processing, marine applications, and power generation. Their remarkable performance guarantees safe and efficient operation in critical situations.

Nickel Alloy DIN 2.4066 Flanges Supplier in Rayong, Nickel Alloy 200 Flanges Nonthaburi, Nickel 200 Flanges Suppliers in Pattaya, UNS N02200 Flanges Price in Thailand, DIN 2.4066 Flanges Price List in Thailand, Alloy 200 Flanges Stockist in Thailand, UNS N02200 Flanges Price List in Nonthaburi

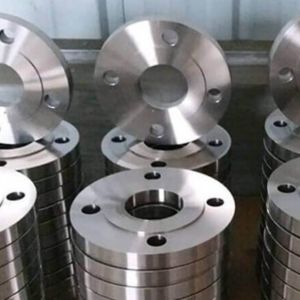

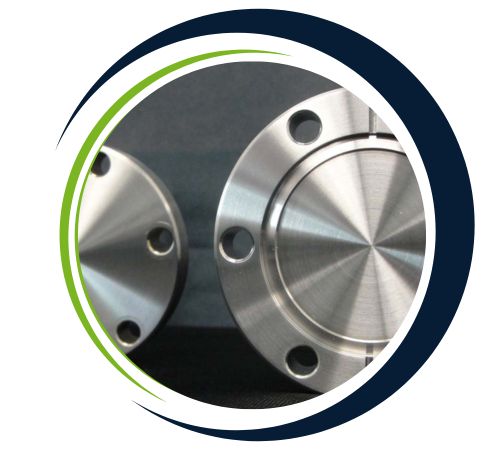

Nickel Alloy 200 Flanges

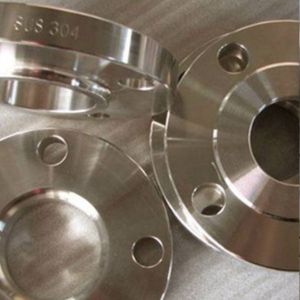

Nickel Alloy 200 Raised Face Flanges

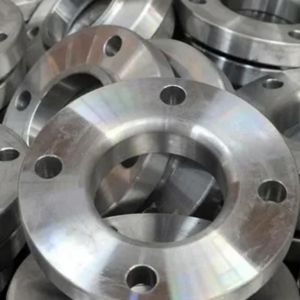

Nickel Alloy 200 RTJ Flange

These flanges are primarily made from high-purity nickel, which gives them excellent resistance to oxidation and a wide array of corrosive substances, including acids and alkalis. They boast impressive mechanical properties, featuring high tensile strength, great ductility, and toughness across a wide temperature spectrum. Their ability to maintain structural integrity even under extreme conditions makes them perfect for demanding industrial uses. The precision manufacturing process ensures accurate dimensions, smooth surfaces, and a reliable fit with piping systems, which enhances both operational safety and efficiency.

UNS N02200 Flanges Weight Chart in Thailand, Nickel Alloy 200 Flanges Supplier in Chiang Mai, DIN 2.4066 Flanges Stockists in Pattaya, Alloy 200 Flanges Dealer in Rayong, UNS N02200 Flanges Price in Nonthaburi, Nickel Alloy 200 Flanges Weight Chart, Nickel DIN 2.4066 Flanges Weight Chart

Nickel Alloy 200 Flanges Specification

Grade	Nickel Alloy 200 / UNS N02200
Standard	ASTM B564, ASME SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2″ – 48″ (15NB – 1200NB)
Class / Pressure Rating	150 Class, 300 Class, 200 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.

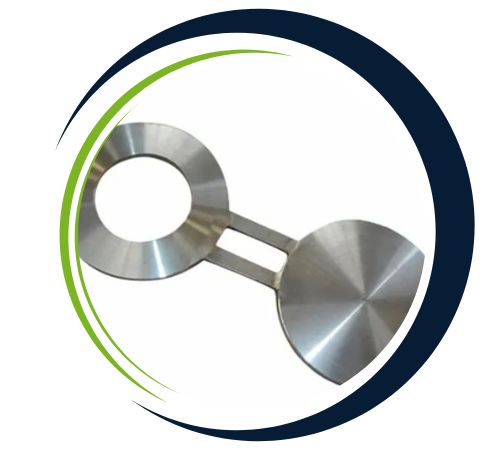

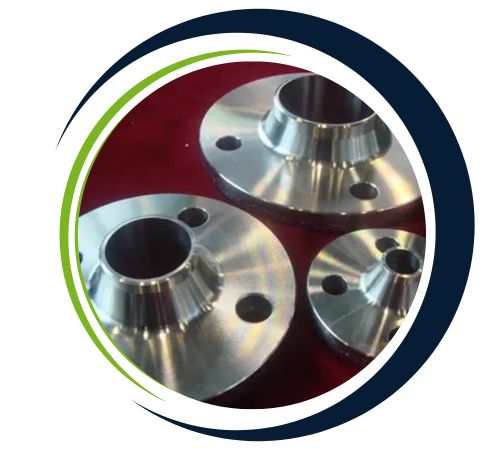

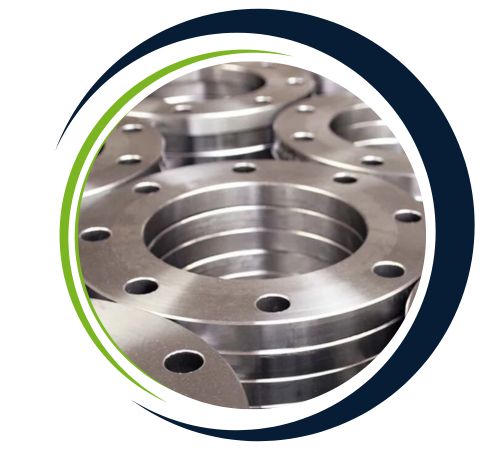

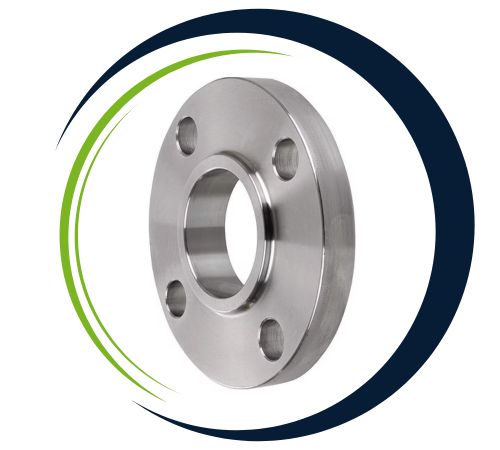

Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Nickel Alloy 200 Flanges Chemical Composition

Grade	C	Mn	Si	S	Cu	Fe	Ni
Nickel 200	0.15 max	0.35 max	0.35 max	0.01 max	0.25 max	0.40 max	99.0 min

Nickel Alloy 200 Flanges Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Nickel 200	8.9 g/cm3	1446 °C (2635 °F)	Psi – 67000 , MPa – 462	Psi – 21500 , MPa – 148	45 %

Equivalent Grades of Nickel Alloy 200 Flanges

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
Nickel 200	2.4066	N02200	NW 2200	NA 11	НП-2	N-100M	Ni 99.2

Largest Nickel Alloy 200 Flanges Supplier in Bangkok, Thailand

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Nickel Alloy 200 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

Contact us to get a quick quote for your requirement.

We offer These Flanges as per DIN, ISO, JIS or ANSI Standard.

Nickel Alloy 200 Flanges are widely utilized in chemical processing plants, marine environments, desalination facilities, and power generation systems, thanks to their exceptional corrosion resistance and mechanical strength. They are ideal for connecting pipes, valves, and equipment in systems that deal with aggressive chemicals, seawater, or high-temperature fluids. These flanges provide leak-proof, secure joints, minimizing maintenance and operational risks. Their durability and longevity make them perfect for industrial applications that require dependable performance in tough conditions, ensuring both safety and efficiency in critical piping and fluid transport systems.

ASTM B564 Nickel Alloy Flanges Supplier in Bangkok, Nickel Alloy 200 Flanges Exporters in Chiang Mai, UNS N02200 Flanges Manufacturers in Pattaya, DIN 2.4066 Flanges Price List in Thailand, UNS N02200 Flanges Dealer in Pattaya, Alloy 200 Flanges Manufacturers in Rayong, Nickel Alloy 200 Flanges Suppliers in Chiang Mai, DIN 2.4066 Flanges Dealers in Bangkok

Types of Nickel Alloy 200 Flanges

Dimensions of Nickel Alloy 200 Flanges

Size in Inch	Size in mm	Outer Diameter	Flange Thickness	Hub OD	Weld Neck OD	Welding Neck Length	Bore	RF Diameter	RF Height	PCD	Weld Face
		A	B	C	D	E	F	G	H	I	J
1/2	15	90	9.6	30	21.3	46	Refer Note	34.9	2	60.3	1.6
3/4	20	100	11.2	38	26.7	51		42.9	2	69.9	1.6
1	25	110	12.7	49	33.4	54		50.8	2	79.4	1.6
1 1/4	32	115	14.3	59	42.2	56		63.5	2	88.9	1.6
1 1/2	40	125	15.9	65	48.3	60		73	2	98.4	1.6
2	50	150	17.5	78	60.3	62		92.1	2	120.7	1.6
2 1/2	65	180	20.7	90	73	68		104.8	2	139.7	1.6
3	80	190	22.3	108	88.9	68		127	2	152.4	1.6
3 1/2	90	215	22.3	122	101.6	70		139.7	2	177.8	1.6
4	100	230	22.3	135	114.3	75		157.2	2	190.5	1.6
5	125	255	22.3	164	141.3	87		185.7	2	215.9	1.6
6	150	280	23.9	192	168.3	87		215.9	2	241.3	1.6
8	200	345	27	246	219.1	100		269.9	2	298.5	1.6
10	250	405	28.6	305	273	100		323.8	2	362	1.6
12	300	485	30.2	365	323.8	113		381	2	431.8	1.6
14	350	535	33.4	400	355.6	125		412.8	2	476.3	1.6
16	400	595	35	457	406.4	125		469.9	2	539.8	1.6
18	450	635	38.1	505	457.2	138		533.4	2	577.9	1.6
20	500	700	41.3	559	508	143		584.2	2	635	1.6
24	600	815	46.1	663	610	151		692.2	2	749.3	1.6

Size of NICKEL ALLOY 200 Flanges

Normal Sizes In inch	Dimension	Flanges Dimensional Sizes 1/2 inch. to 2 1/2 inch.
		Class 125 Class 150		Class 300		Class 400		Class 600		Class 900		Class 1500		Class 2500
		inch.	mm	inch.	millimeter	inch.	mm	inch.	mm	inch.	mm	inch.	mm	inch		mm
1/2	A	3 1/2	88.9	3 3/4	95.2	3 3/4	95.2	3 3/4	95.2	4 3/4	121	4 3/4	121	5 1/4	133.4
	b	7/16	11.1	9/16	14.3	9/16	14.3	9/16	14.3	7/8	22.2	7/8	22.2	1 3/16	30.2
	D2	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9	1 3/8	34.9
	D1	2 3/8	60.3	2 5/8	66.7	2 5/8	66.7	2 5/8	66.7	3 1/4	82.6	3 1/4	82.6	3 1/2	88.9
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	5/8	15.9	5/8	15.9	5/8	15.9	7/8	22.2	7/8	22.2	7/8	22.2
3/4	A	3 7/8	98.4	4 5/8	117.5	4 5/8	117.5	4 5/8	117.5	5 1/8	130	5 1/8	130	5 1/2	139.7
	b	1/2	12.7	5/8	15.9	5/8	15.9	5/8	15.9	1	25.4	1	25.4	1 1/4	31.8
	D2	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9	1 11/16	42.9
	D1	2 3/4	69.8	3 1/4	82.5	3 1/4	82.5	3 1/4	82.5	3 1/2	88.9	3 1/2	88.9	3 3/4	95.2
	n	4	4	4	4	4	4	4	4	4	4	4	–	4	44
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2
1	A	4 1/4	108	4 7/8	123.8	4 7/8	123.8	4 7/8	123.8	5 7/8	149.2	5 7/8	149.2	6 1/4	159
	b	9/16	14.3	11/16	17.5	11/16	17.5	11/16	17.5	1 1/8	28.6	1 1/8	28.6	1 3/8	34.9
	D2	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8	2	50.8
	D1	3 1/8	79.4	3 1/2	88.9	3 1/2	88.9	3 1/2	88.9	4	102	4	102	4 1/4	108
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1	25.4
1 1/4	A	4 5/8	117.5	5 1/4	133.4	5 1/4	133.4	5 1/4	133.4	6 1/4	159	6 1/4	159	7 1/4	184.2
	b	5/8	15.9	3/4	19	13/16	20.6	13/16	20.6	1 1/8	28.6	1 1/8	28.6	1 1/2	38.1
	D2	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5	2 1/2	63.5
	D1	3 1/2	88.9	3 7/8	98.4	3 7/8	98.4	3 7/8	98.4	4 3/8	111	4 3/8	111	5 1/8	130
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	15.9	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
1 1/2	A	5	127	6 1/8	155.6	6 1/8	155.6	6 1/8	155.6	7	177.8	7	177.8	8	203
	b	11/16	17.5	13/16	20.6	7/8	22.2	7/8	22.2	1 1/4	31.8	1 1/4	31.8	1 3/4	44.5
	D2	2 7/8	73 98	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73	2 7/8	73
	D1	3 7/8	4	4 1/2	114	4 1/2	114	4 1/2	114	4 7/8	124	4 7/8	124	5 3/4	146
	n	4	4	4	4	4	4	4	4	4	4	4	4	4	4
	d	5/8	. 15.9	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8
2	A	6	152.4	6 1/2	165.1	6 1/2	165.1	6 1/2	165.1	8 1/2	215.9	8 1/2	215.9	9 1/4	234.9
	b	3/4	19	7/8	22.2	1	25.4	1	25.4	1 1/2	38.1	1 1/2	38.1	2	50.8
	D2	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1	3 5/8	92.1
	D1	4 3/4	121	5	127	5	127	5	127	6 1/2	165.1	6 1/2	165.1	6 3/4	171
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	3/4	19	3/4	19	3/4	19	1	25.4	1	25.4	1 1/8	28.6
2 1/2	A	7	177.8	7 1/2	190.5	7 1/2	190.5	7 1/2	190.5	9 5/8	244	9 5/8	244	10 1/2	266.7
	b	7/8	22.2	1	25.4	1 1/8	28.6	1 1/8	28.6	1 5/8	41.3	1 5/8	41.3	2 1/4	57.2
	D2	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	104.8	4 1/8	105	4 1/8	105	4 1/8	105
	D1	5 1/2	139.7	5 7/8	149.2	5 7/8	149.2	5 7/8	149.2	7 1/2	190.5	7 1/2	190.5	7 3/4	197
	n	4	4	8	8	8	8	8	8	8	8	8	8	8	8
	d	3/4	19	7/8	22.2	7/8	22.2	7/8	22.2	1 1/8	28.6	1 1/8	28.6	1 1/4	31.8

Are Custom Sizes Available for Nickel Alloy 200 Flanges?

Yes, we offer custom sizes for Nickel Alloy 200 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.

Material Testing

We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
