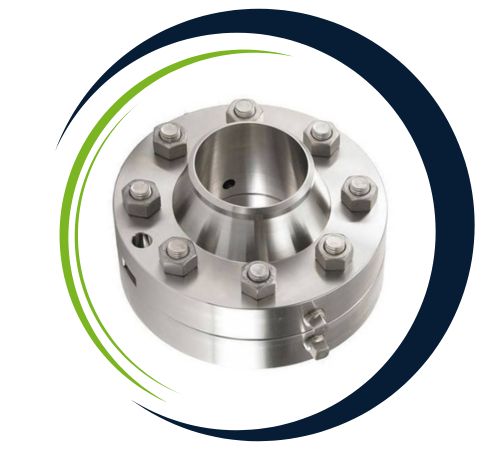

Supachok Flanges, located in the vibrant city of Bangkok, Thailand, stands out as a top-notch manufacturer and supplier of high-quality Monel 400 Flanges. Known for their precision engineering and remarkable durability, these flanges meet international standards and are built to perform reliably even in the toughest corrosive and high-temperature conditions. Each Monel 400 Flange from Supachok Flanges is crafted to deliver outstanding strength, corrosion resistance, and a long service life. They find their place in various industries, including chemical, marine, petrochemical, and power, where they ensure secure, leak-proof connections—making them the go-to choice for critical piping systems that demand safety, reliability, and efficiency.
Monel 400 Flanges are primarily made from a high-nickel alloy, featuring around 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, and carbon. These flanges boast impressive mechanical properties, such as high tensile strength, toughness, and resistance to deformation under stress. They maintain their structural integrity even at elevated temperatures and in harsh chemical environments, offering exceptional corrosion resistance against acids, alkalis, and seawater. Thanks to precision manufacturing, they come with accurate dimensions, smooth surfaces, and a reliable fit with piping systems, which enhances their long-term durability and operational efficiency.
| Specification | ASTM B564 / ASME SB564 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 400 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

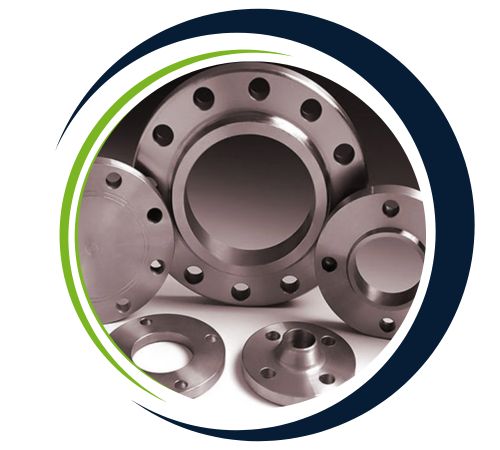

| Production Technique | Forged, Heat treated and machined |

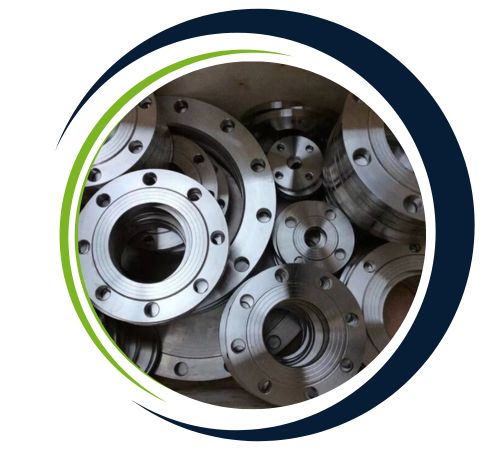

| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |

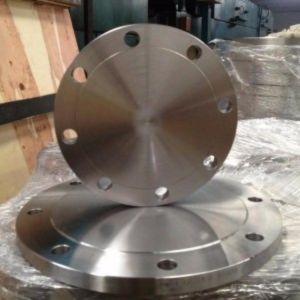

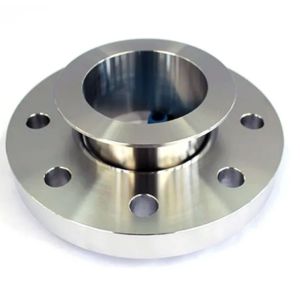

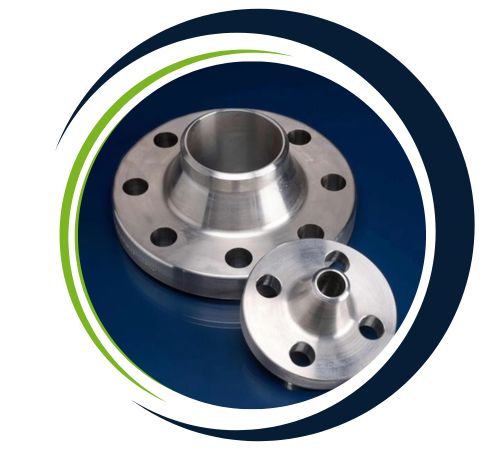

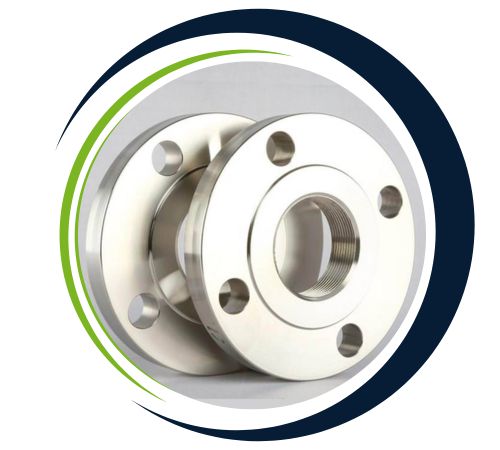

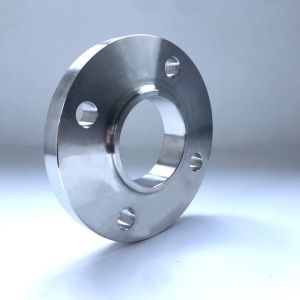

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Monel 400 Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
You’ll find Monel 400 Flanges widely utilized in chemical processing plants, seawater and marine systems, desalination plants, and power generation facilities. They are perfect for connecting pipes, valves, and equipment in systems that handle corrosive media, high-temperature fluids, and aggressive chemicals. These flanges create secure, leak-proof joints, minimizing maintenance needs and operational risks. With their strength, corrosion resistance, and mechanical durability, Monel 400 Flanges are crucial for critical industrial applications, ensuring dependable, long-lasting performance and safe operation in demanding environments where safety and durability are paramount.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Yes, we offer custom sizes for Monel 400 Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
