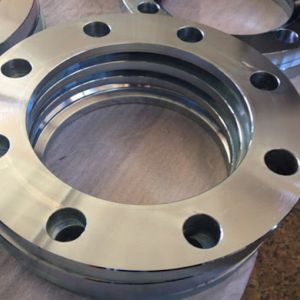

Supachok Flanges, a well-respected manufacturer and supplier based in Bangkok, Thailand, is dedicated to crafting top-notch Alloy Steel Forged Flanges that are perfect for tough industrial applications. These flanges are made using cutting-edge forging techniques, which guarantee exceptional strength, durability, and precise dimensions. Built to withstand high pressures and temperatures, Supachok’s forged flanges are a go-to choice in sectors like oil & gas, petrochemicals, power generation, and shipbuilding. With a commitment to precision engineering, rigorous quality standards, and ensuring customer satisfaction, Supachok Flanges provides reliable Alloy Steel Forged Flanges that fulfill both local and international industrial needs.
Alloy Steel Forged Flanges are made from a blend of elements like chromium, molybdenum, carbon, and manganese, giving them remarkable strength, toughness, and resistance to heat and corrosion. Their forged design improves grain flow, leading to better mechanical properties compared to cast flanges. On a mechanical level, these flanges boast high tensile and yield strength, excellent creep resistance, and the capability to endure high temperatures and pressures. Their durability and resistance to thermal fatigue make them perfect for long-lasting industrial use.
| Specification | ASTM A182 / ASME SA182 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 The other standard: AWWA C207; EN1092-1, GOST12820, JIS B2220; KS B1503, SABS1123; NFE29203; UNI2276 |
| Grades | Alloy Steel F1, F5, F9, F11, F22, F91 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |

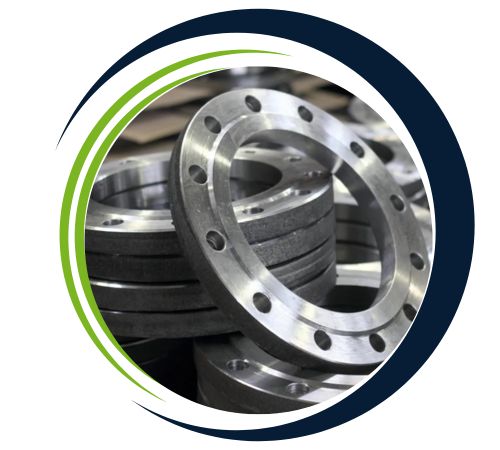

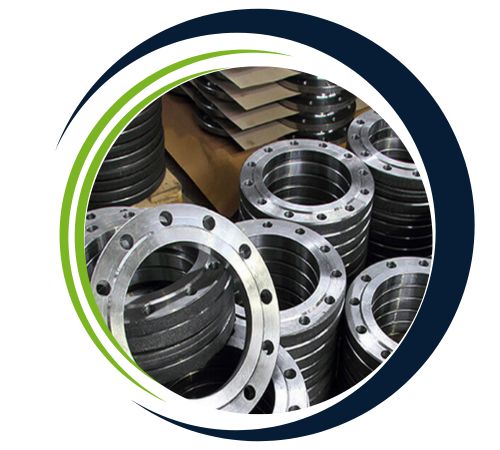

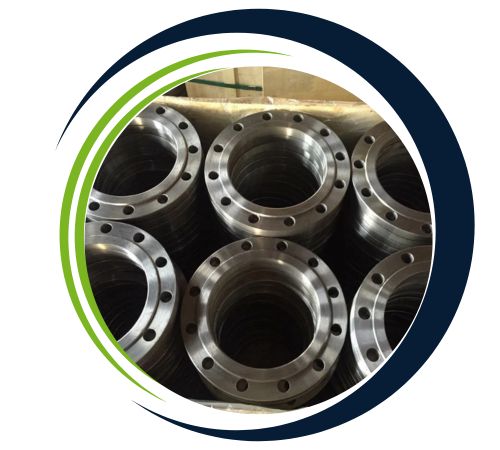

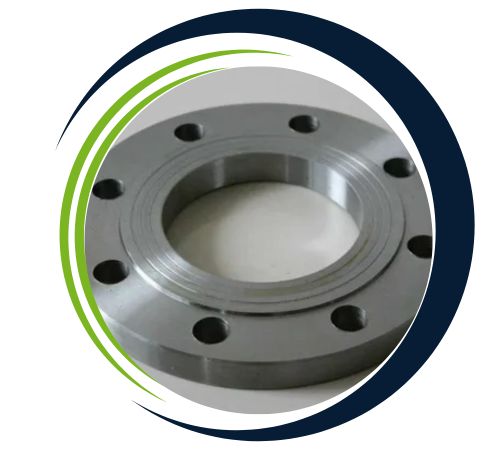

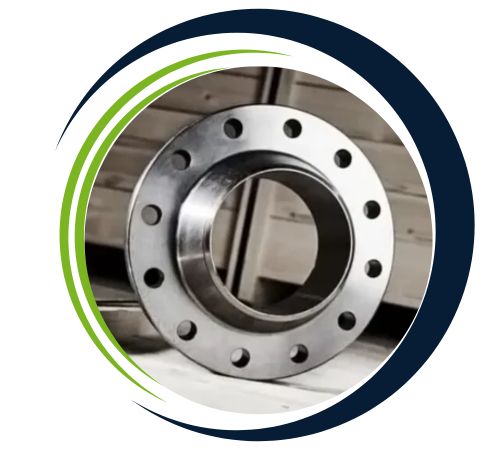

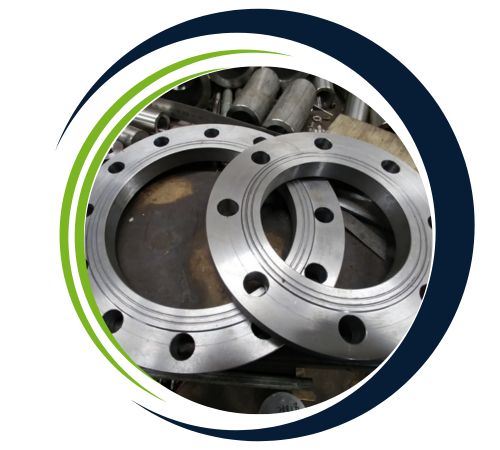

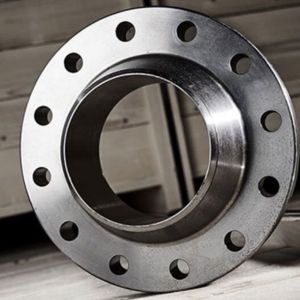

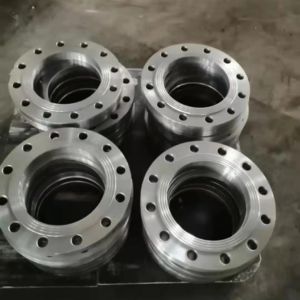

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Alloy Steel Forged Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Alloy Steel Forged Flanges widely used in high-pressure pipelines, boilers, turbines, and heat exchangers, thanks to their strength and reliability. In the oil and gas sector, they’re essential in refineries, offshore platforms, and petrochemical plants where leak-proof connections are a must. Power plants rely on these flanges for steam lines and critical piping systems. Plus, their toughness and resistance to corrosion make them ideal for chemical processing industries, shipbuilding, and heavy machinery, ensuring safe and efficient operation even in harsh industrial environments.
| ASME/ANSI B 16.5 | Forged Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Forged Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | Forged Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Forged |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
| STANDARD | DIN WERKSTOFF NR. | UNS |
| Alloy F1 | 1.5415 | K12822 |
| ASTM A182 F5 | 1.7362 | K41545 |
| ASTM A182 F9 | 1.7386 | K90941 |
| ASTM A182 F11 | 1.7335 | K11597 |
| ASTM A182 F22 | 1.7380 | K21590 |
| ASTM A182 F91 | 1.4903 | K21590 |
Yes, we offer custom sizes for Alloy Steel Forged Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
