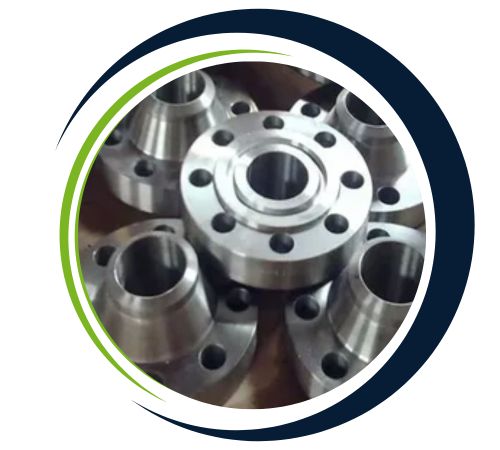

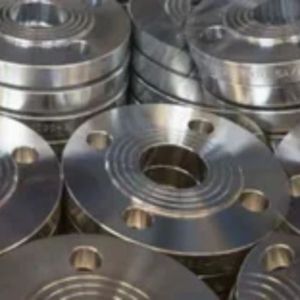

Supachok Flanges, a top-notch manufacturer and supplier based in Bangkok, Thailand, is all about crafting high-quality JIS B2220 5K Flanges. These flanges are designed to meet the rigorous Japanese Industrial Standards, ensuring they deliver precision, strength, and durability. They create secure, leak-proof connections in low-pressure piping systems, all while keeping structural integrity and reliable performance intact. Supachok Flanges caters to a variety of industries, including oil & gas, petrochemical, chemical processing, power generation, and water treatment. With a strong emphasis on quality, operational safety, and customer satisfaction, their JIS B2220 5K Flanges promise long-lasting performance, efficient service, and dependable operation in industrial and offshore piping applications around the globe.
Made from top-quality materials like carbon steel, stainless steel, and alloy steel, JIS B2220 5K Flanges boast excellent corrosion resistance, strength, and durability. Their unique composition guarantees reliable performance even under low-to-moderate pressure and temperature conditions. On the mechanical side, these flanges offer impressive tensile strength, yield strength, and impact resistance. Thanks to their precision-engineered design, they ensure leak-proof, secure connections in piping systems, maintaining consistent performance and operational safety. JIS B2220 5K Flanges are perfect for general industrial applications where reliability and durability are a must.

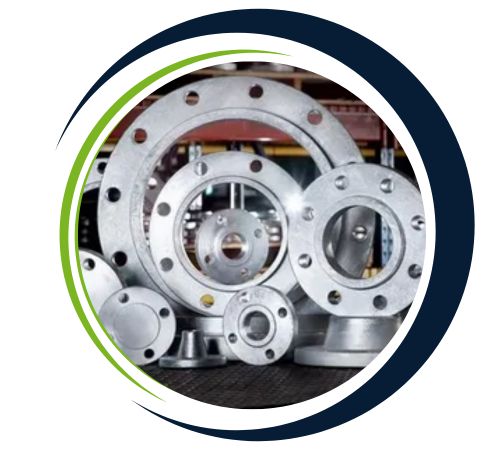

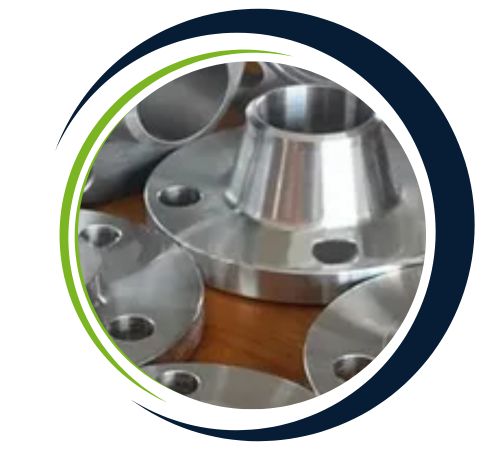

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of JIS B2220 5K Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.

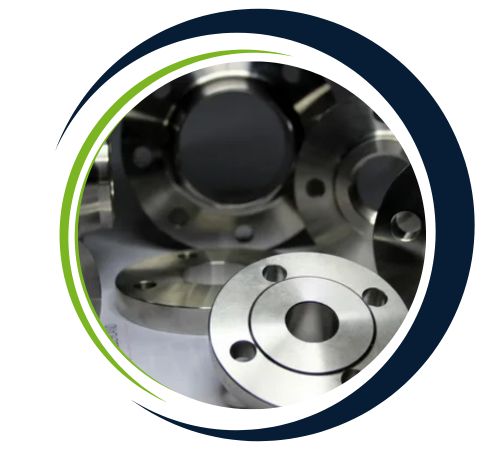

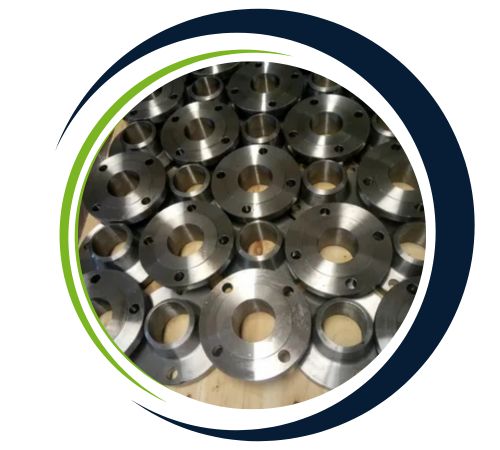

| Size | (1/2″) To (48″) |
|---|---|
| Standards | 5K, 10K, 40K, 16K 20K 30K, 63K |
| Size Of Bore Diameter Flange | NPS ≤ 10 |
| Standard Dimensions | EN-1092, ASME B16.48, API605, BS4504, EN1092, UNI, ISO, API7S-43, ANSI/ASME B16.5, API7S-15, MSS S44, IS 2062, ASME B16.36, DIN, AWWA C207, B16.47 Series A & B, BS1560-3.1, ISO70051, API. |
| Minimum Pressure | 150# To 2500# |
| Flange Face Type Manufacturer | Raised Face, Groove And Small Tongue Groove, RTJ, Flat Face, Large Tongue & Large Male-Female And Small Male-Female, Lap-Joint Face. |
| Top Six Type Of Flange | Threaded Flange, Lap Joint Flange, Socket-Weld Flange, Blind Flange, Slip-On Flange, Weld Neck Flange |
| Standard Materials | Duplex Steel & Super Duplex Steel, Copper Nickel, Inconel, Mild Steel, Stainless Steel, Hastelloy, Alloy Steel, Carbon Steel. |
| Thickness Length | NPS ≤ 18 |
| Manufacturing Process | Forged/ Machined/ Heat Treated |
| Other Type Of Flange | Forged/ Plate/ Threaded |
| JIS B2220 5k | LTB | DRILLING | |||||||
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. OF FLANGE | FLANGE THIKNESS | THIKNESS OF BLRF | BOSSED LENGTH SOH.SW LI | WN LENGTH | DIAMETER OF PITCH CIRCLE | BOLT HOLES NUMBER | DIAMETER BOLT HOLE | |
| MILLIMETER | IN. | C | T | T1 | L | L1 | PCD | # | H |
| 10 | 3/8 | 75 | 9 | 9 | 13 | 24 | 55 | 4 | 12 |
| 15 | 1/2 | 80 | 9 | 9 | 13 | 25 | 60 | 4 | 12 |
| 20 | 3/4 | 85 | 10 | 10 | 15 | 28 | 65 | 4 | 12 |
| 25 | 1 | 95 | 10 | 10 | 17 | 30 | 75 | 4 | 12 |
| 32 | 1 1/4 | 115 | 12 | 12 | 19 | 33 | 90 | 4 | 15 |
| 40 | 2 1/2 | 120 | 12 | 12 | 20 | 34 | 95 | 4 | 15 |
| 50 | 2 | 130 | 14 | 14 | 24 | 36 | 105 | 4 | 15 |
| 65 | 2 1/2 | 155 | 14 | 14 | 27 | 39 | 130 | 4 | 15 |
| 80 | 3 | 180 | 14 | 14 | 30 | 41 | 145 | 4 | 19 |
| 90 | 3 1/2 | 190 | 14 | 14 | N/A | 41 | 155 | 4 | 19 |
| 100 | 4 | 200 | 16 | 16 | 36 | 41 | 165 | 8 | 19 |
| 125 | 5 | 235 | 16 | 16 | 40 | 43 | 200 | 8 | 19 |
| 150 | 6 | 265 | 18 | 18 | 40 | 49 | 230 | 8 | 19 |
| 175 | 7 | 300 | 18 | 18 | N/A | 49 | 260 | 8 | 23 |
| 200 | 8 | 320 | 20 | 20 | N/A | 53 | 280 | 8 | 23 |
| 225 | 9 | 345 | 20 | 20 | N/A | 54 | 305 | 12 | 23 |
| 250 | 10 | 385 | 22 | 22 | N/A | 61 | 345 | 12 | 23 |
| 300 | 12 | 430 | 22 | 22 | N/A | 62 | 390 | 12 | 23 |
| 350 | 14 | 480 | 24 | 24 | N/A | 73 | 435 | 12 | 25 |
| 400 | 16 | 540 | 24 | 24 | N/A | 76 | 495 | 16 | 25 |
| 450 | 18 | 605 | 24 | 24 | 40 | 79 | 555 | 16 | 25 |
| 500 | 20 | 655 | 24 | 24 | 40 | 79 | 605 | 20 | 25 |
| 550 | 22 | 720 | 26 | 26 | 42 | 81 | 665 | 20 | 27 |
| 600 | 24 | 770 | 26 | 26 | 44 | 81 | 715 | 20 | 27 |
| 650 | 26 | 825 | 26 | 28 | 48 | 85 | 770 | 24 | 27 |
| 700 | 28 | 875 | 26 | 30 | 48 | 94 | 820 | 24 | 27 |
| 750 | 30 | 945 | 28 | 32 | 52 | 100 | 880 | 24 | 33 |
| JIS b2220 Standard | JIS b2220 Class | Diameter Of JIS | Bolt Circle Diameter | No. of Bolts | Size Of Bolt | Bolt Hole Diameter |
|---|---|---|---|---|---|---|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
| AS 2129 Flange | Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
| ANSI B16.5 Flanges | ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flanges | 121 | 83 | 4 | 19 | 22 | |
| ISO 7005 (DIN) Flange | PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flanges | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flanges | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flanges | 95 | 65 | 4 | M12 | 14 |
These flanges are a go-to choice in industries that need reliable, corrosion-resistant, and high-quality piping solutions for low-pressure scenarios. You’ll find them commonly used in oil & gas pipelines, petrochemical and chemical plants, refineries, and water treatment facilities. They’re also well-suited for marine engineering, HVAC systems, and various industrial construction projects. By providing secure, leak-proof connections with solid structural integrity, JIS B2220 5K Flanges help ensure operational efficiency, durability, and long-term reliability. Their mechanical and chemical resistance makes them a preferred option for low-pressure industrial piping needs.
Yes, we offer custom sizes for JIS B2220 5K Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
