Supachok Flanges, based in Bangkok, Thailand, is a reputable manufacturer and supplier of **Duplex Steel Flanges 2205**. They provide high-quality, reliable flange solutions tailored for demanding industrial applications. With a strong focus on precision engineering, rigorous quality control, and adherence to international standards, Supachok Flanges guarantees exceptional durability, strength, and performance in every product they offer. These Duplex Steel Flanges 2205 are specifically designed to endure high pressure, elevated temperatures, and corrosive environments, making them perfect for critical piping systems. They cater to various industries, including oil and gas, petrochemicals, chemical processing, and power generation, delivering efficient, long-lasting, and cost-effective solutions for clients around the globe.
The composition of Duplex Steel Flanges 2205 features a well-balanced blend of austenitic and ferritic stainless steel, enhanced with chromium, nickel, molybdenum, and nitrogen. This unique mix provides outstanding corrosion resistance and mechanical strength. These flanges boast impressive tensile strength ranging from approximately 650 to 750 MPa, yield strength between 450 and 550 MPa, and good elongation properties. They excel in resisting pitting, stress corrosion cracking, and general corrosion while maintaining dimensional stability even under high-pressure and high-temperature conditions. Their robust makeup ensures dependable performance in aggressive and challenging industrial settings.
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
|---|---|
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 25Bar 16Bar 40Bar |
| EN | 25Bar 6Bar 10Bar 16Bar 40Bar |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Raised Face (RF), Lap-Joint Face (LJF), Small Male-Female (SMF), Flat Face (FF), Large Male-Female (LMF), Small Tongue, Large Tongue & Groove, Groove |
| Uses & application |
|
| Pressure Rating ANSI | 600 LBS, 900 LBS, 150 LBS, 2500 LBS, 300 LBS, 1500 LBS |
| Pressure Calculation in DIN | 16Bar 6Bar 25Bar 40Bar 10Bar / PN10 PN16 PN6 PN25 PN64 PN40 |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Coating | Zinc Plated,Oil Black Paint, Cold and Hot Dip Galvanized, Anti-rust Paint, Yellow Transparent |
| Most common types | Threaded / Screwed / Forged / Plate |
| Equipment | Pushing Machine, Press machine, electric bevelling machine, Bending machine, Sand-blasting machine etc |
| Origin | West Europe / Japan / Indian / USA / Korean |
| Test | Direct-reading Spectrograph, UI trasonic flaw detector, Hydrostatic testing machine, X-ray detector, Magnetic particle detector |
| Standards | API605, ANSI/ASME B16.5, B16.47 Series A & B, B16.48, ASME Flanges, API7S-15, API7S-43, BS Flanges, DIN Flanges, EN Flanges, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, EN1092 |
| Export to | Dubai, Singapore, Indonesia, Ukraine, Korea, Iran, India, Saudi Arabia, Thailand, Egypt, Oman, Spain, Canada, USA, Ireland, Brazil, Peru, etc |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS 15 NB (1/2″) to 200 NB (8″) Equal and Reducing Configurations |

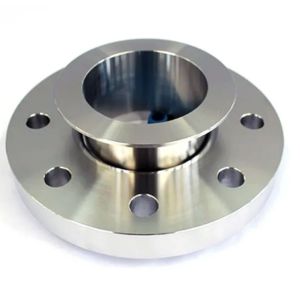

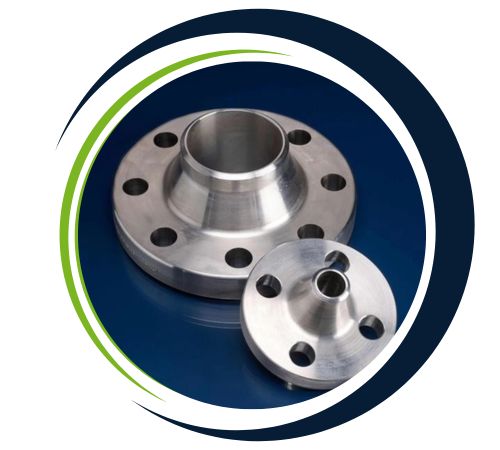

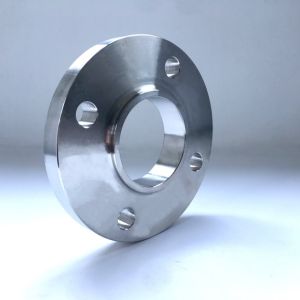

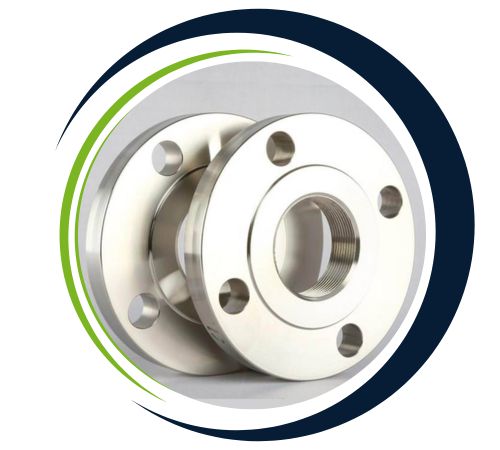

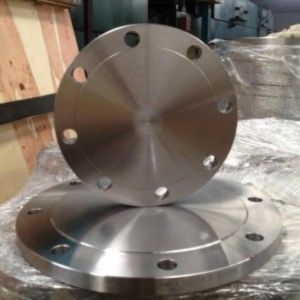

Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Duplex Steel Flanges 2205, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Duplex Steel Flanges 2205 are extensively utilized in industries that demand high-strength, corrosion-resistant, and durable piping solutions. You’ll often find them in oil and gas pipelines, chemical and petrochemical plants, offshore platforms, seawater desalination systems, and power generation facilities. These flanges create secure connections, prevent leaks, and ensure safe operations in harsh and corrosive environments. With their blend of strength, longevity, and resistance to environmental stress, Duplex Steel Flanges 2205 are the go-to choice for critical industrial and infrastructure projects, delivering efficiency and safety where it matters most.
| C | N | P | Si | Mn | Mo | Fe | Cr | S | Ni |
| 1.0 | 0.03 | 0.02 | 2.0 | 3.0 – 3.5 | 22.0 – 23.0 | 0.03 | 4.5 – 6.5 | 0.14 – 0.2 | Bal |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Co-eff of Thermal Expansion (μm/m/°C) | Thermal Conductivity (W/m.K) | Specific Heat 0-100°C ( J/kg.K) | Electrical Resistivity (nΩ.m) | |||
| 0-100°C | 0-315°C | 0-538°C | at 100°C | at 500°C | |||||
| 2205 | 782 | 190 | 13.7 | 14.2 | – | 19 | – | 418 | 850 |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
Yes, we offer custom sizes for Duplex Steel Flanges 2205 to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
