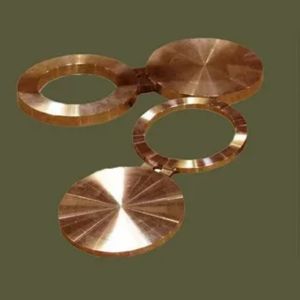

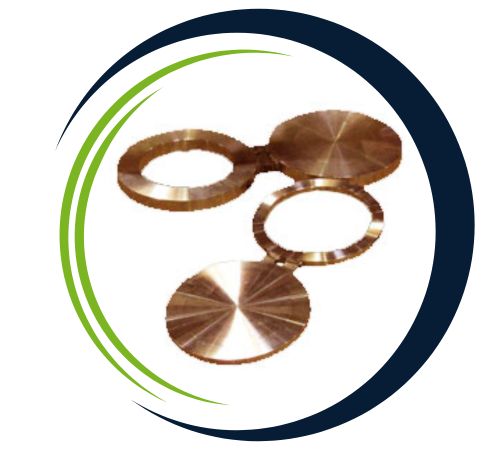

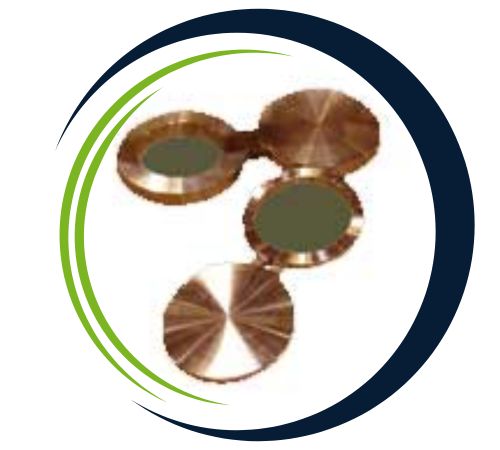

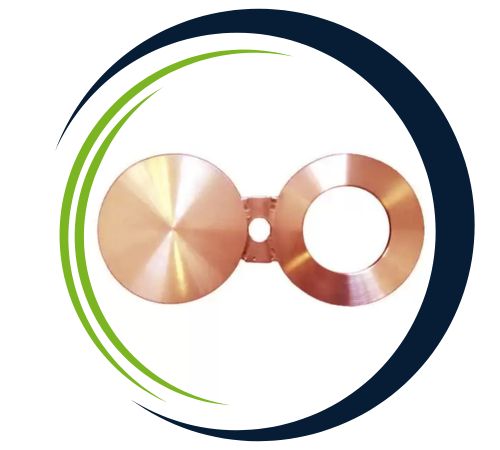

Supachok Flanges, a top-notch manufacturer and supplier based in Bangkok, Thailand, specializes in high-quality Copper Nickel Spectacle Flanges that are celebrated for their durability, precision, and resistance to corrosion. These flanges feature a clever dual-disc design—one solid and one open—making it easy to manage flow and perform maintenance in pipeline systems. With Copper Nickel Spectacle Flanges, you can count on secure, leak-proof connections, even in the toughest environmental conditions. They’re a go-to choice in marine, offshore, chemical, and power generation sectors, as Supachok Flanges adheres to international quality standards, providing reliable, cost-effective, and long-lasting solutions that boost safety and performance in critical industrial and engineering applications.
These Copper Nickel Spectacle Flanges are primarily made from copper and nickel, usually in ratios of 70/30 or 90/10, with a touch of iron and manganese to enhance their mechanical strength and corrosion resistance. This unique blend ensures they stand up to the challenges posed by seawater, biofouling, and chemical exposure. On the mechanical side, these flanges boast impressive tensile and yield strength, toughness, and fatigue resistance. The spectacle design allows for easy toggling between open and closed positions, merging functionality with robust sealing capabilities. When you combine the material makeup with these mechanical properties, it’s clear why Copper Nickel Spectacle Flanges are perfect for demanding and high-performance industrial settings.
| Specification | ASTM B151 / ASME SB151 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.48, B16.47 Series A & B, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.48/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. BS Flange, EN Flange, API 6A Flange, ANSI Flange, ASME Flange, DIN Flange, EN1092-1 Flange, UNI Flange, JIS/ KS Flange, BS4504 Flange, GB Flange, AWWA C207 Flange, GOST Flange, PSI Flange B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B151 90/10 Copper Nickel Flanges |
| Grades | Copper Nickel 70/30, 90/10 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Copper Nickel Spectacle Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
You’ll find Copper Nickel Spectacle Flanges in various industries that need efficient flow control and corrosion-resistant connections. In marine and offshore settings, they’re used in seawater pipelines, desalination plants, and shipbuilding systems. The chemical and petrochemical sectors rely on them to isolate or redirect corrosive fluids during operations or maintenance. Power generation facilities incorporate them in condensers, cooling water systems, and heat exchangers. Plus, they’re utilized in water treatment plants, HVAC systems, and industrial piping networks.
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Cupro Nickel 90/10 | 2.0872 | C70600 |
| Cupro Nickel 70/30 | 2.0882 | C71500 |
| ASME/ANSI B 16.48 | Spectacle Blind Flange |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | Blind Flange [Series A & B],Threaded Flange |
| PRESSURE CLASS | 75, 150, 300, 90/10, 600, 900 |
| ASME/ANSI B 16.36 | Spectacle Blind Flange |
| PRESSURE CLASS | 300, 90/10, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 90/10 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 90/10, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Copper Nickel Spectacle Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
