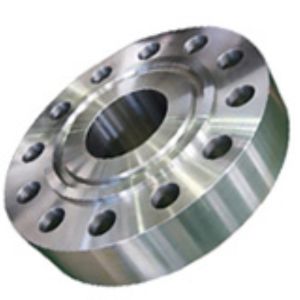

Supachok Flanges, a prominent manufacturer and supplier based in Bangkok, Thailand, takes pride in providing high-quality Alloy 20 RTJ Flanges that are expertly crafted for exceptional strength and resistance to corrosion. Renowned for their precision and adherence to international standards, these flanges are specifically designed for critical applications in high-pressure and corrosive settings. The Alloy 20 RTJ Flanges from Supachok Flanges ensure leak-proof and durable connections, making them a trusted choice in industries such as chemical processing, petrochemicals, pharmaceuticals, marine, and food production. With a strong focus on quality and customer satisfaction, Supachok guarantees long-lasting performance and reliable service across a diverse range of industrial applications.
These Alloy 20 RTJ Flanges are primarily made from nickel, iron, and chromium, with added molybdenum and copper to boost their resistance to harsh chemicals. Nickel provides toughness, while chromium helps with oxidation and scaling resistance. Copper enhances protection against sulfuric acid, and molybdenum contributes to increased strength and pitting resistance. Mechanically, these flanges showcase high tensile and yield strength, impressive elongation, and dependable hardness. Their toughness, formability, and weldability make them ideal for high-pressure, corrosive, and elevated temperature environments where a long service life is essential.
| Specification | ASTM B462 / ASME SB462 |
|---|---|
| Size Chart | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Pressure Rating ANSI | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production Technique | Forged, Heat treated and machined |
| Connect Type/ Flange Face Type | Ring Type Joint (RTJ), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove |
| Special design | As per your drawing AS, ANSI, BS, DIN and JIS |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, Alloy 20-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine, Sand-blasting machine etc |
| Manufacturer of | ANSI DIN, GOST, JIS, UNI, BS, AS2129, AWWA, EN, SABS, NFE etc. B.S: BS4504 , BS3293, BS1560, BS10 DIN: DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636, DIN 2637, DIN 2638 ASTM B462 F316 Alloy 20 Flanges |
| Grades | Alloy 20 |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Supachok Flanges, a leading supplier in Bangkok, Thailand, offers an extensive selection of Alloy 20 RTJ Flanges, including weld neck flanges, slip-on flanges, blind flanges, threaded flanges, and lap joint flanges. Designed for diverse industrial applications, our high-quality inventory and commitment to exceptional service make us a trusted choice for flange products in the region.
Alloy 20 RTJ Flanges are extensively utilized in industries that demand tight, leak-proof connections in challenging conditions. They are frequently found in chemical plants for managing sulfuric, nitric, and phosphoric acids. In the pharmaceutical and food sectors, they help maintain hygienic, contamination-free operations. Their outstanding durability also makes them vital in oil and gas refineries, marine engineering, power generation, and petrochemical facilities. Thanks to their ring-type joint design, these flanges excel in pipelines, heat exchangers, pressure vessels, and reactors that operate under high pressure and temperature, ensuring safety and efficiency.
| STANDARD | WERKSTOFF NR. | UNS | AFNOR | EN |
| Alloy 20 | 2.4660 | N08020 | Z2NCUD31-20AZ | NiCr20CuMo |
| ASME/ANSI B 16.5 | RTJ Flange |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| ASME/ANSI B 16.47 | RTJ Flange [Series A & B],Welding Neck Flange |
| PRESSURE CLASS | 75, 150, 300, 400, 600, 900 |
| ASME/ANSI B 16.36 | RTJ Flange |
| PRESSURE CLASS | 300, 400, 600, 900, 1500, 2500 |
| PRESSURE CLASS | PN 2.5 TO PN 40 |
| BS 4504[PART 1] | Hubbed Slip-On |
| PRESSURE CLASS | PN 2.5 TO PN 400 |
| BS 1560 BOSS | Hubbed Slip-On Hubbed Threaded |
| PRESSURE CLASS | 150, 300, 400, 600, 900, 1500, 2500 |
| BS10 | Plate Slip-On Flange, Slip-On Boss Flange |
| TABLE | D, E, F, H |
| DIN FLANGES | DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673 |
| PRESSURE CLASS | PN 6 TO PN 100 |
Yes, we offer custom sizes for Alloy 20 RTJ Flanges to meet specific project needs. Our team at Supachok Flanges is committed to providing tailored solutions for all your requirements. For more details, contact us at sales@supachokflanges.com.
We are renowned for delivering products with precise, accurate dimensions. Each product undergoes thorough testing, both destructive and non-destructive, to ensure quality before being shipped to our customers.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
